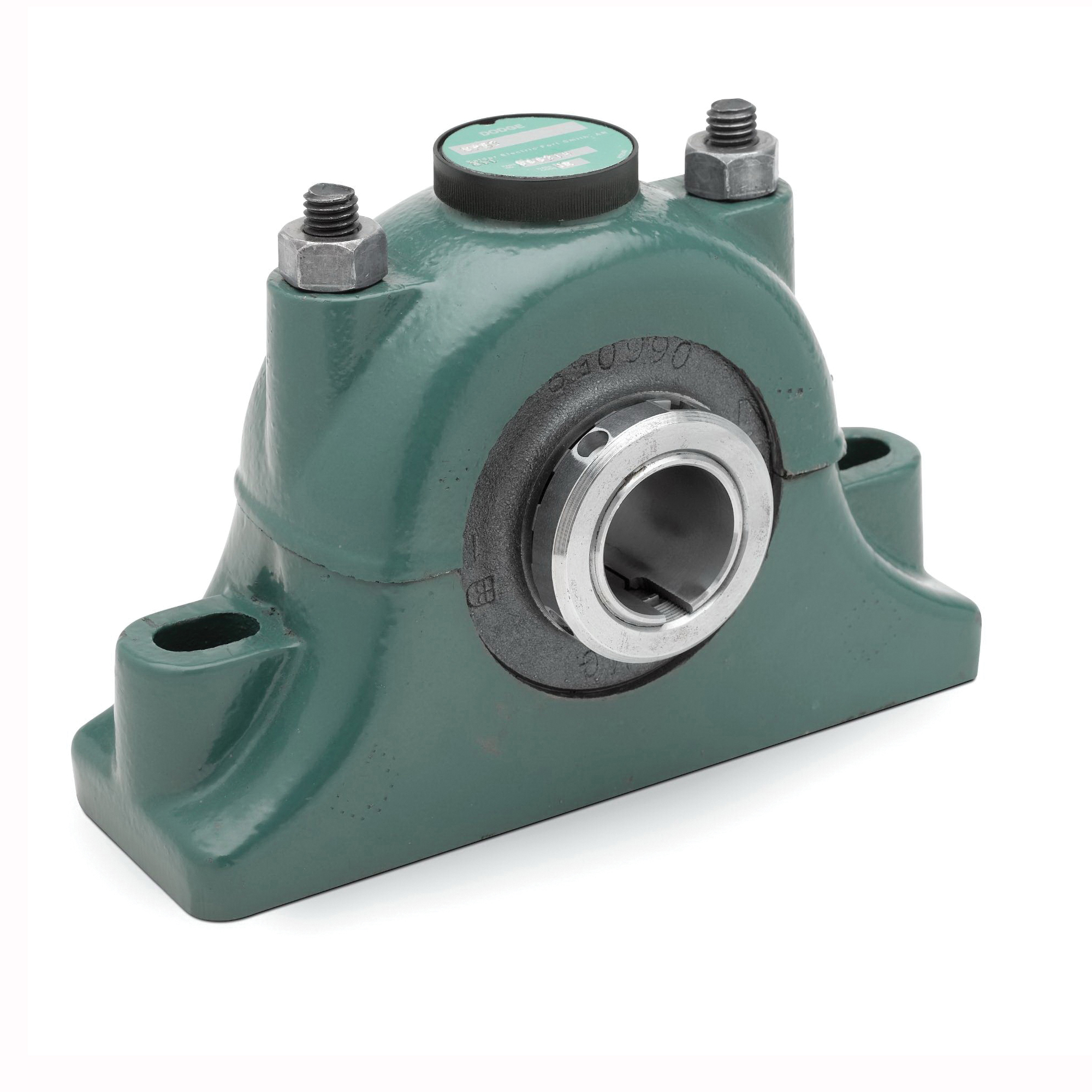

P-2-BSD-111-E Dodge® 066252 111 Special Duty Pillow Block Roller Bearing Unit, 1-11/16 in Dia Bore, 7.56 to 7.94 in L Bolt Center-to-Center, 3.13 in Base to Bore Centerline, 9-1/2 in OAL x 6.81 in OAH
Dodge® special duty double row tapered roller bearings have the highest capacity of all Dodge® tapered roller bearings. they carry heavy radial loads and combined radial and thrust loads. The maximum recommended load which can be applied is limited by various components in the system such as bearing, housing, shaft, shaft attachment, speed and life requirements. Dodge® special duty tapered roller bearings have been applied successfully even when these limits have been exceeded under controlled operating conditions.
-
BrandDodge®
-
UPC782475036035
-
Manufacturer Part Number066252
-
CountryUSA
-
Load Capacity1000 lb
-
Locking DeviceTapered Adapter Sleeve
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed3000 rpm
-
TypeSpecial Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypePiston Ring
-
Series111
-
Base Width3.44 in
-
Base to Bore Centerline3.13 in
-
Bolt Center-to-Center Length7.56 to 7.94 in
-
Bore Diameter1-11/16 in
-
Bore TypeTapered
-
Expansion TypeExpansion
-
Overall Height6.81 in
-
Overall Length9-1/2 in
-
Overall Width4.13 in
- Capable of handling any combination of radial and thrust load
- Effective dual piston ring seals
- Adapter nut allows for easier installation and removal
- Elongated bolt holes
- Tapered roller assemblies
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100940667 |
-
Alternative Part NumberP2B-SD-111E
-
UNSPSC31171511
-
Standards/ApprovalsUL Listed
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
-
Catalog
