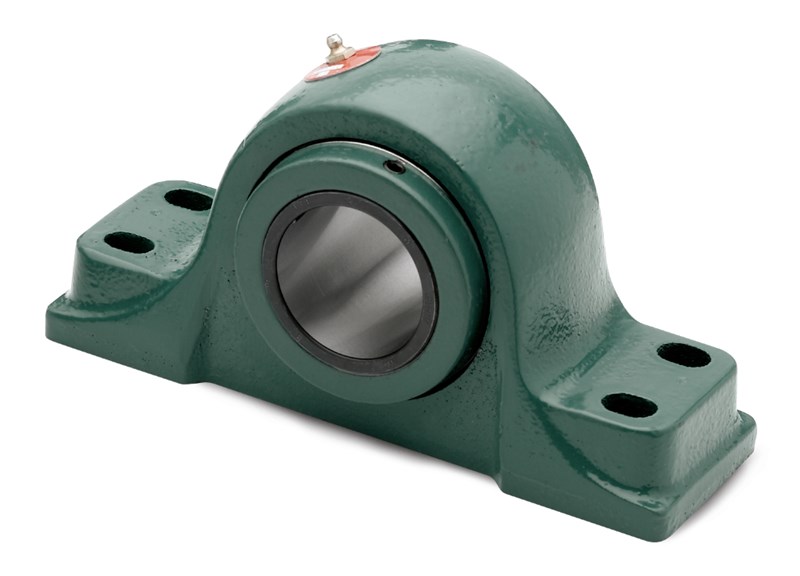

Dodge® 023692 407 Type E-Xtra Pillow Block Roller Bearing Unit, 4-7/16 in Dia Bore, 13-1/4 to 13-3/4 in L Bolt Center-to-Center, 4-3/4 in Base to Bore Centerline, 16.63 in OAL 9.28 in OAH
Dodge® 023692 407 Type E-Xtra Pillow Block Roller Bearing Unit, 4-7/16 in Dia Bore, 13-1/4 to 13-3/4 in L Bolt Center-to-Center, 4-3/4 in Base to Bore Centerline, 16.63 in OAL x 9.28 in OAH
-
BrandDodge®
-
UPC782475963980
-
Manufacturer Part Number023692
-
CountryUSA
-
Load Capacity30000 lb Dynamic/188400 lb Static
-
Locking Device65 deg Set Screw
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed1360 rpm
-
TypeType E-Xtra
-
Mounting TypeFour-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Series407
-
Base Width4.63 in
-
Base to Bore Centerline4-3/4 in
-
Bolt Center-to-Center Length13-1/4 to 13-3/4 in
-
Bore Diameter4-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height9.28 in
-
Overall Length16.63 in
-
Overall Width6-3/4 in
- Factory assembled, adjusted and prelubricated
- Case hardened rollers and races
- Triple rubber lip contacting seals
- Easy installation and maintenance
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738683 |
| Motion Industries | 00570659 |
-
Alternative Part NumberP4B-E-407R|23692
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
