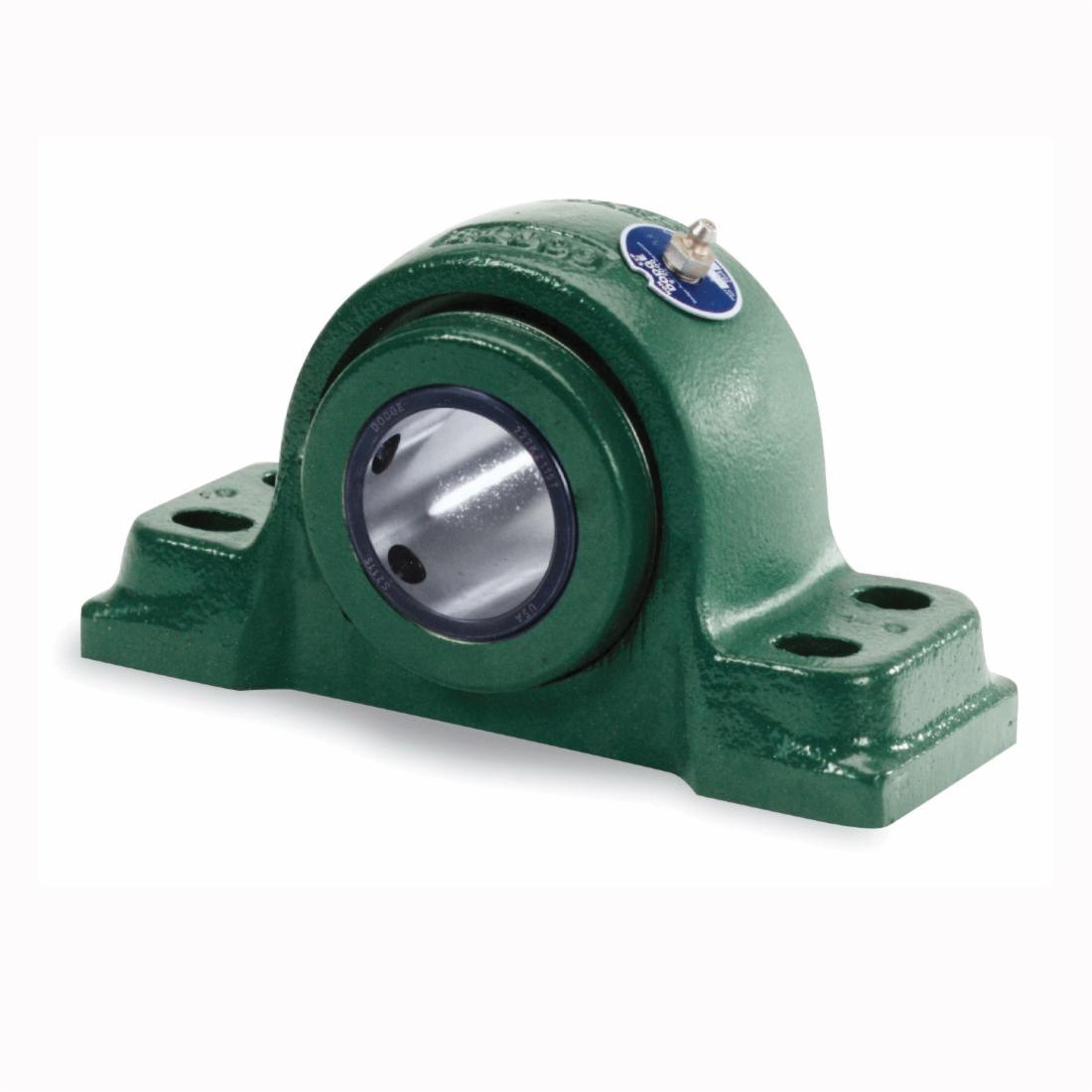

Dodge® 071828 415 Heavy Duty Type S2000 Pillow Block Roller Bearing Unit, 4-15/16 in Dia Bore, 15.13 to 15.88 in L Bolt Center-to-Center, 5-1/2 in Base to Bore Centerline, 17-1/2 in OAL x 11-1/8 in OAH
Unit-housed double row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
-
BrandDodge®
-
UPC782476366650
-
Manufacturer Part Number071828
-
CountryUSA
-
Load Capacity146000 lb Dynamic/196000 lb Static
-
Locking Device65 deg Set Screw
-
FinishPowder Coated
-
MaterialSteel
-
Maximum Speed870 rpm
-
TypeHeavy Duty Type S2000
-
Mounting TypeFour-Bolt Base
-
Seal TypeTrident™
-
Series415
-
Base Width5.03 in
-
Base to Bore Centerline5-1/2 in
-
Bolt Center-to-Center Length15.13 to 15.88 in
-
Bore Diameter4-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height11-1/8 in
-
Overall Length17-1/2 in
-
Overall Width6.91 in
- Misalignment capability
- Expansion capability
- Superior sealing
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- Seal land maintains full seal contact when misaligned
- Corrosion resistant flinger blocks contaminants
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101357106 |
| Motion Industries | 03835294 |
-
Alternative Part NumberSP4B-S2-415R
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Owners/User Manual
-
Specification Sheet
-
Line Drawing
