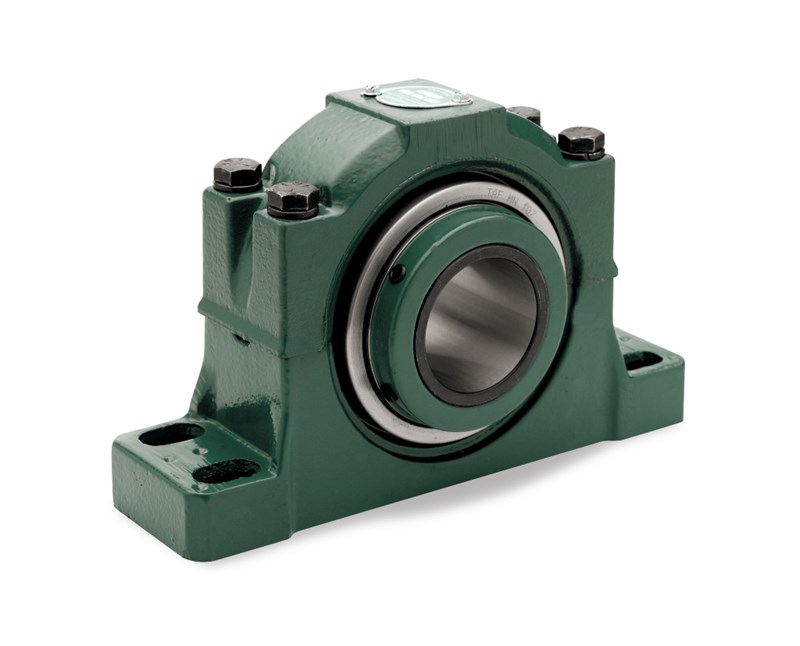

Dodge® 023407 307 Double Interlock Pillow Block Roller Bearing Unit, 3-7/16 in Dia Bore, 12.81 to 13.81 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 16 in OAL 9.42 in OAH
Dodge® 023407 307 Double Interlock Pillow Block Roller Bearing Unit, 3-7/16 in Dia Bore, 12.81 to 13.81 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 16 in OAL x 9.42 in OAH
-
BrandDodge®
-
UPC782475725779
-
Manufacturer Part Number023407
-
CountryUSA
-
Load Capacity17750 lb Dynamic/108600 lb Static
-
Locking Device65 deg Set Screw
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed1640 rpm
-
TypeDouble Interlock
-
Mounting TypeFour-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Series307
-
Base Width4 in
-
Base to Bore Centerline4-1/2 in
-
Bolt Center-to-Center Length12.81 to 13.81 in
-
Bore Diameter3-7/16 in
-
Bore TypeRound
-
Expansion TypeExpansion
-
Overall Height9.42 in
-
Overall Length16 in
-
Overall Width5 in
- Factory assembled, adjusted and prelubricated
- Triple rubber lip contacting seals
- Case hardened rollers and races
- Easy installation and maintenance
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100940419 |
| Motion Industries | 00574389 |
-
Alternative Part NumberP4B-DI-307RE|23407
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
