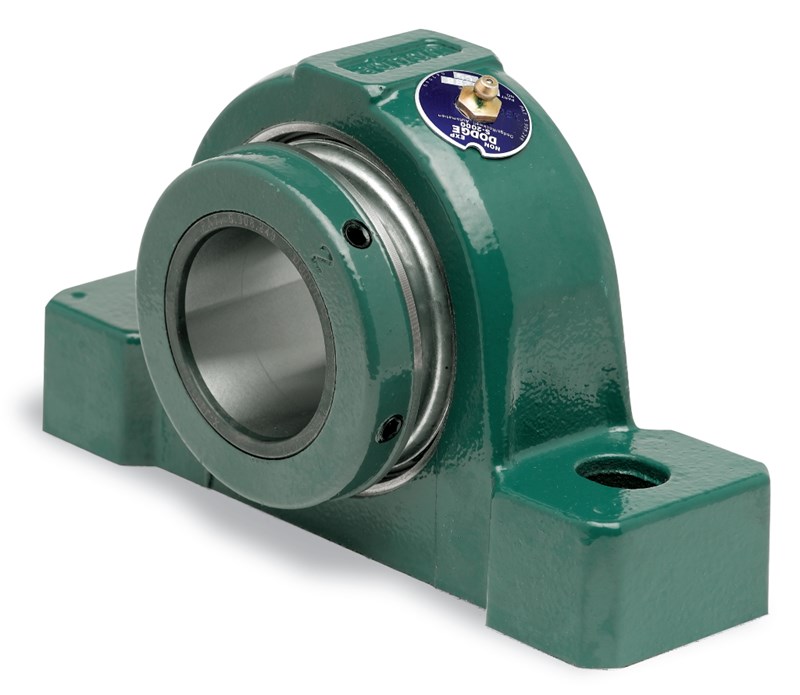

Dodge® 070279 Type S2000 Pillow Block Roller Bearing Unit, 2 in Dia Bore, 6.06 to 6.44 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8.38 in OAL x 4.56 in OAH
Dodge® 070279 Type S2000 Pillow Block Roller Bearing Unit, 2 in Dia Bore, 6.06 to 6.44 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8.38 in OAL x 4.56 in OAH
-
BrandDodge®
-
UPC782475305872
-
Manufacturer Part Number070279
-
CountryUSA
-
Load Capacity22000 lb Dynamic/24000 lb Static
-
Locking DeviceSpringlok™ Concentric Collar
-
Temperature Rating-100 to 200 deg F
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed2200 rpm
-
TypeType S2000
-
Mounting TypeTwo-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Base Width2-1/2 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length6.06 to 6.44 in
-
Bore Diameter2 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.56 in
-
Overall Length8.38 in
-
Overall Width2.84 in
- High-capacity double row spherical rollers
- Permits static or dynamic misalignment up to +/- 1 deg
- Factory sealed, lubed, and adjusted
- Expansion capability up to 3/8 in
- Flinger to shield seal and bearing from contamination/damage
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738637 |
| Motion Industries | 00573375 |
-
Alternative Part NumberP2B-S2-200R
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Line Drawing
-
Specification Sheet
-
Catalog
-
Warranty Information
