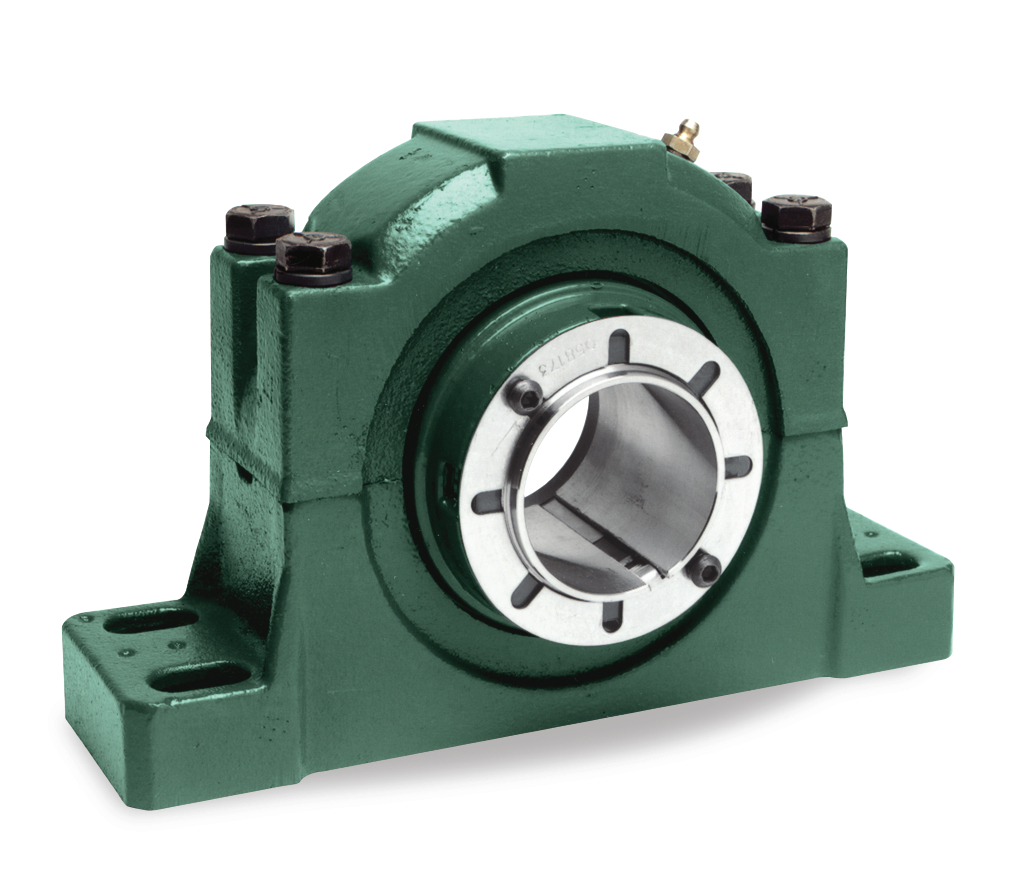

Dodge® 070068 207 Imperial Type SAF Pillow Block Roller Bearing Unit, 2-7/16 in Dia Bore, 8.63 to 9.63 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 11.13 in OAL x 6.86 in OAH
Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.
-
BrandDodge®
-
UPC782475310975
-
Manufacturer Part Number070068
-
CountryUSA
-
Load Capacity39000 lb Dynamic/47500 lb Static
-
Locking DeviceAdapter Mounted
-
Temperature Rating-100 to 200 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed2400 rpm
-
TypeImperial Type SAF
-
Mounting TypeFour-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Series207
-
Base Width3.13 in
-
Base to Bore Centerline3-1/4 in
-
Bolt Center-to-Center Length8.63 to 9.63 in
-
Bore Diameter2-7/16 in
-
Bore TypeRound
-
Expansion TypeExpansion
-
Overall Height6.86 in
-
Overall Length11.13 in
-
Overall Width3.42 in
- Factory lubed, sealed and adjusted, ready to slip onto the shaft
- Patented imperial push/pull adapter mounting system
- Interchangeable with SAF style pillow blocks
- Eliminates need for feeler gauges
- Easy and intuitive removal method
- Seal operates up to +/- 1 deg of misalignment
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100942183 |
| Motion Industries | 02317762 |
-
Alternative Part NumberP4B515-ISAF-207RE
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Instruction/Installation Manual
-
Specification Sheet
-
Line Drawing
-
Catalog
-
Warranty Information
