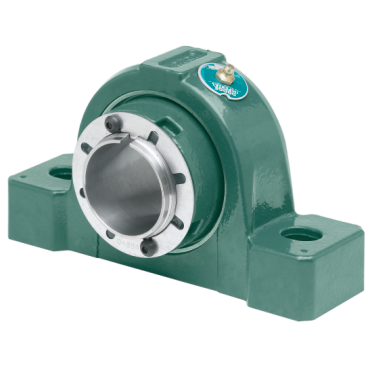

Dodge® 069447 Imperial Pillow Block Roller Bearing Unit, 2-15/16 in Dia Bore, 7.94 to 8.31 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10.44 in OAL x 6.38 in OAH
Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.
-
BrandDodge®
-
UPC782475308019
-
Manufacturer Part Number069447
-
CountryUSA
-
Load Capacity41500 lb Dynamic/53000 lb Static
-
Locking DeviceAdapter Mounted
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed2250 rpm
-
TypeImperial
-
Mounting TypeTwo-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Base Width3.08 in
-
Base to Bore Centerline3-1/4 in
-
Bolt Center-to-Center Length7.94 to 8.31 in
-
Bore Diameter2-15/16 in
-
Bore TypeRound
-
Expansion TypeExpansion
-
Overall Height6.38 in
-
Overall Length10.44 in
-
Overall Width3-1/2 in
- Push pull adapter mount
- Grease limiting speeds 30% higher than set screw mounts
- Patented adapter mounting system
- Superior holding power reduces the fretting corrosion caused by vibration
- Seal/land on OD of inner ring maintains full contact pressure even when misaligned
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100942118 |
| Motion Industries | 02317694 |
-
Alternative Part NumberP2B-IP-215RE
-
UNSPSC31171511
-
Standards/ApprovalsUL Listed
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
