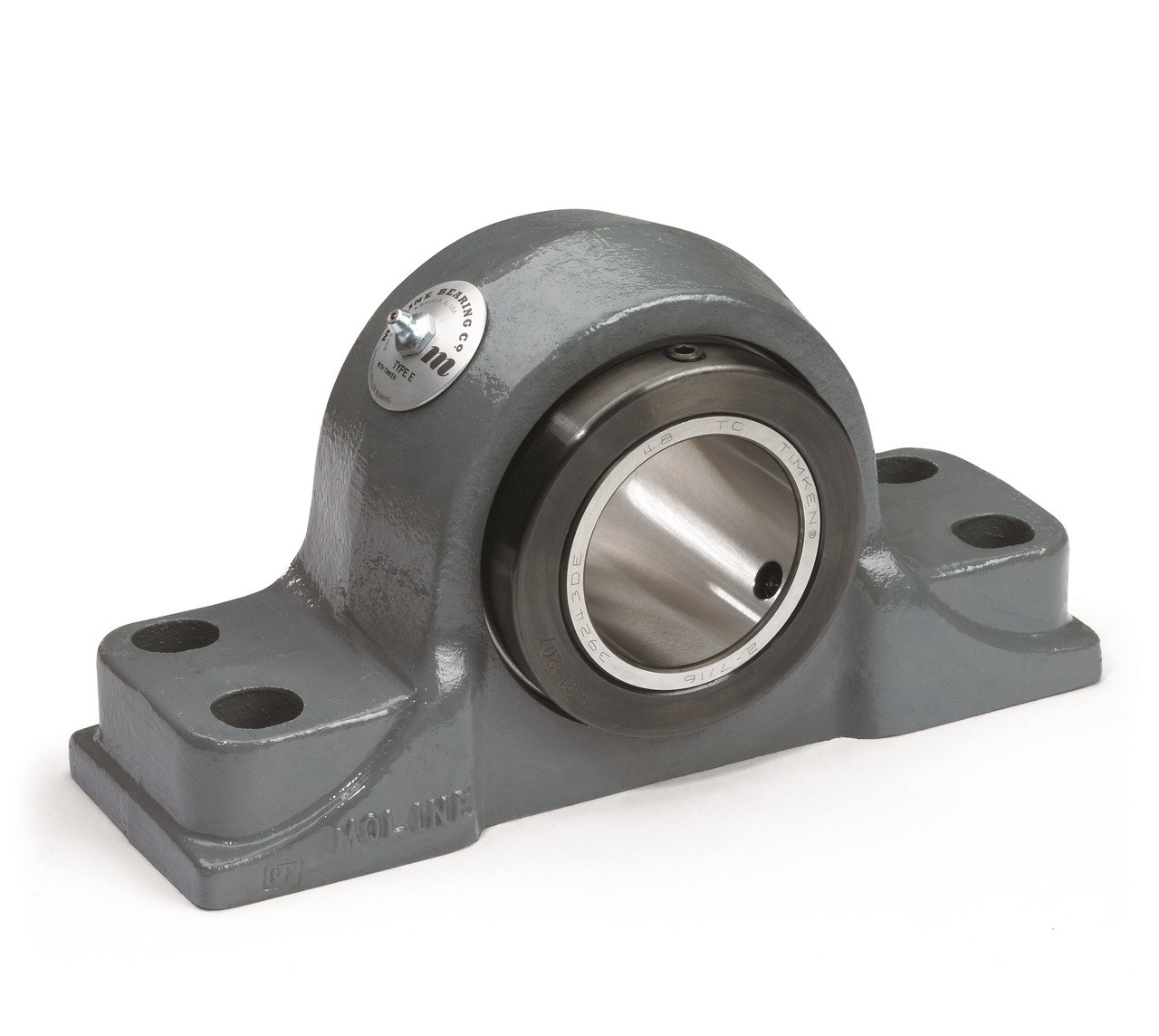

Moline Bearing 19341207 Type E Pillow Block Bearing, 2-7/16 in Dia Bore, 8-1/2 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 10-1/2 in OAL x 5-1/2 in OAH
Made of Cast Iron, this Solid Type E 4-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 2 7⁄16 in (2.4375 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard V-Guard Contact Seal made of Nitrile, Teflon and Steel, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
-
BrandMoline Bearing
-
Manufacturer Part Number19341207
-
CountryUSA
-
TypeType E
-
Mounting Type4-Bolt
-
Base Width3-1/2 in
-
Base to Bore Centerline2-3/4 in
-
Bolt Center-to-Center Length8-1/2 in
-
Bore Diameter2-7/16 in
-
Overall Height5-1/2 in
-
Overall Length10-1/2 in
-
Overall Width4 in
- Introducing the Moline Type E 4-Bolt Pillow Block Bearings - the pinnacle of engineering excellence and reliability for demanding industrial applications
- Crafted with precision and designed to endure, these bearings provide the solid foundation your machinery deserves
- Unmatched Precision and Durability - - Our Type E 4-Bolt Pillow Block Bearings, specifically engineered for performance, include the supreme Timken Enhanced DEE Tapered Roller Bearings
- Crafted from vacuum-degassed steel, these high-performance inserts boast the industry's leading load ratings, ensuring maximum efficiency and longevity
- The case-hardened rollers and races, along with a double-extended inner race, present a superior load and speed profile, adeptly handling slight angular shaft misalignment and high radial as well as thrust loads
- Robust Housing Design - - Moline's precision-machined housings are crafted from premium US-Made Class 30 cast iron, offering uncompromising ruggedness and support
- The compact design of the Type E 4-Bolt Pillow Block doesnt sacrifice stability, providing unparalleled strength and a reliable grip on your machinery
- This resiliency makes it the ideal choice for heavy-duty applications, making it a top pick in industries like Mining, Cranes, Forestry, Oil and Gas, and Power Generation
- Enhanced Sealing Technology - - With our Standard V-Guard Contact Seal made of Nitrile and Teflon, these bearings function efficiently across a wide temperature range from 0F to 250F
- This feature not only enhances the bearing life by protecting it against contaminants but also ensures reliable performance under diverse environmental conditions
- Pre-Assembled Convenience - - Engineered for rapid deployment, each bearing is pre-assembled, adjusted, sealed, and pre-lubricated, dramatically reducing installation time and eliminating potential contamination from dirt or dust
- This set-up not only minimizes downtime but also offers cost savings, making our bearings a pragmatic choice for quick, cost-effective installations
- Adaptable and Versatile - - Molines Type E 4-Bolt Pillow Blocks provide dimensional interchangeability with comparable Type E units, seamlessly fitting into your existing setup, and offering a stable enhancement over 2-Bolt alternatives
- Our experience encompasses numerous applications, from conveyors and screening equipment to robust machinery in mining and aggregate sectors
- Custom Housing Options - - While our standard products come in a classic finish, we recognize the unique requirements of every application
- Therefore, we offer custom coatings and finishes, including Powder Coating, Nickel Plating, and Stainless Steel Powder Coating
- Whatever your operational environment, Molines versatile housing choices are designed to meet your specific criteria
- With a distinctive blend of quality, efficiency, and practicality, these bearings are the optimal choice for industrial leaders seeking robust and reliable solutions
- Elevate your machinerys performance and resilience with Moline Type E Bearings where durability meets innovation
- Trust in our dedication to quality and explore the full potential of your operational capabilities today
-
Package DescriptionEACH
