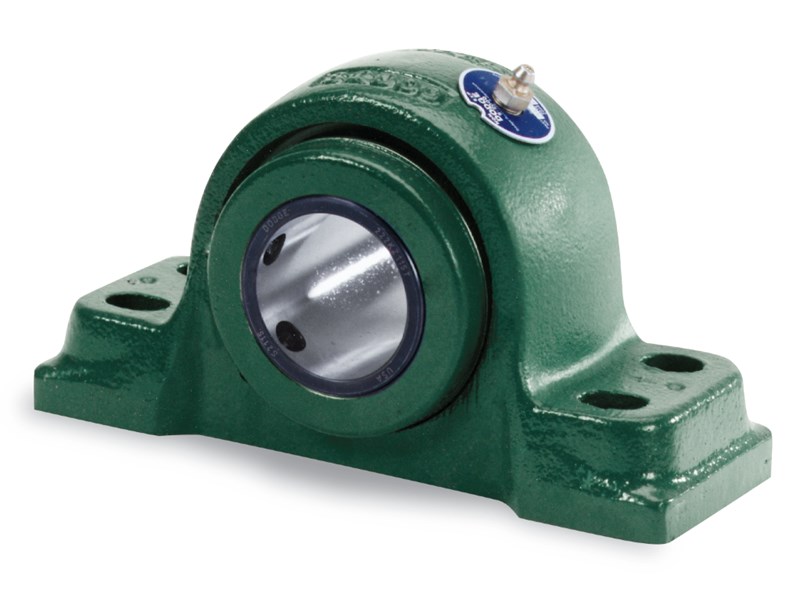

Dodge® 070371 Type S2000 Pillow Block Roller Bearing Unit, 3-7/16 in Dia Bore, 9.38 to 10.63 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL 7.56 in OAH
Dodge® 070371 Type S2000 Pillow Block Roller Bearing Unit, 3-7/16 in Dia Bore, 9.38 to 10.63 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7.56 in OAH
-
BrandDodge®
-
UPC782475306008
-
Manufacturer Part Number070371
-
CountryUSA
-
Load Capacity65500 lb Dynamic/81500 lb Static
-
Locking DeviceSpringlok™ Concentric Collar
-
Temperature Rating-100 to 200 deg F
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed1280 rpm
-
TypeType S2000
-
Mounting TypeFour-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Base Width4.13 in
-
Base to Bore Centerline3-3/4 in
-
Bolt Center-to-Center Length9.38 to 10.63 in
-
Bore Diameter3-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height7.56 in
-
Overall Length13 in
-
Overall Width4.02 in
- Case-carburized inner rings resist cracking
- Factory sealed, lubed, and adjusted
- More contact area
- Larger rollers
- Expansion capability up to 3/8 in
- Permits static or dynamic misalignment up to +/- 1 deg
- Flinger to shield seal and bearing from contamination/damage
- High-capacity double row spherical rollers
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 07547570 |
-
Alternative Part NumberP4B-S2-307R|70371
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Specification Sheet
-
Line Drawing
-
Line Drawing
-
Catalog
