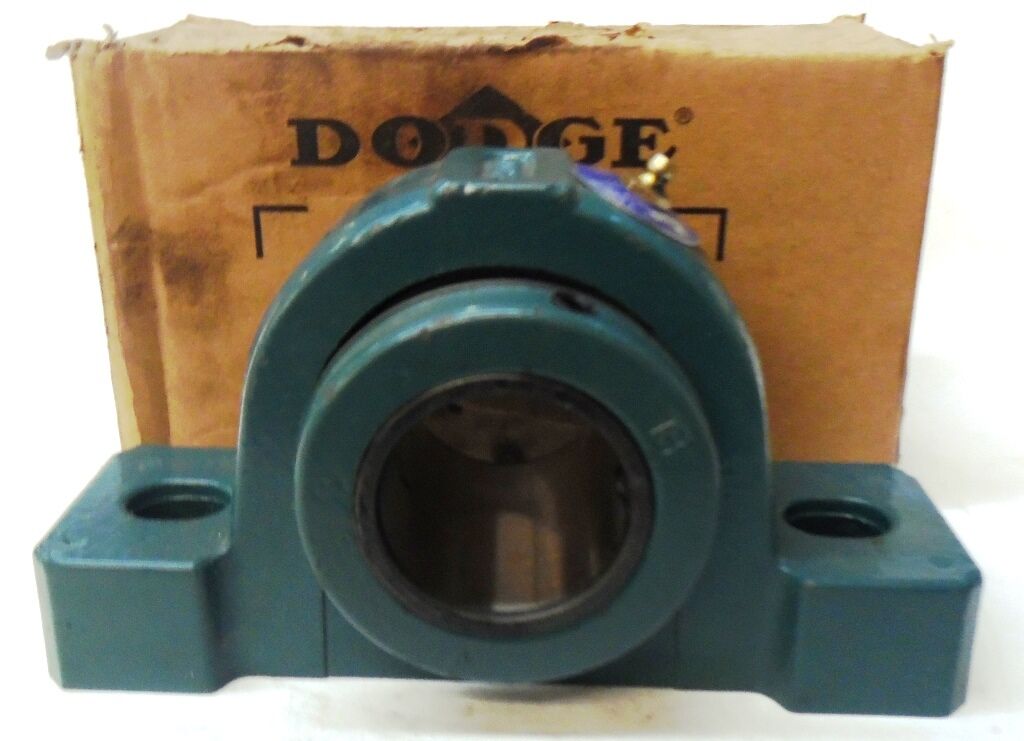

P-4-BS-2407-R Dodge® 70375 615/536 Type S-2000 Pillow Block Roller Bearing Unit, 4-7/16 in Dia Bore, 13 to 14 in L Bolt Center-to-Center, 4-3/4 in Base to Bore Centerline, 16-1/2 in OAL 9.63 in OAH
-
BrandDodge®
-
Manufacturer Part Number70375
-
CountryUSA
-
Load Capacity104000 lb Dynamic/132000 lb Static
-
Locking DeviceSpringlok™ Concentric Collar
-
Temperature Rating-100 to 200 deg F
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed990 rpm
-
TypeType S-2000
-
Mounting Type4-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Series615/536
-
Base Width4-3/4 in
-
Base to Bore Centerline4-3/4 in
-
Bolt Center-to-Center Length13 to 14 in
-
Bore Diameter4-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion Bearing (Fixed)
-
Overall Height9.63 in
-
Overall Length16-1/2 in
-
Overall Width6.53 in
