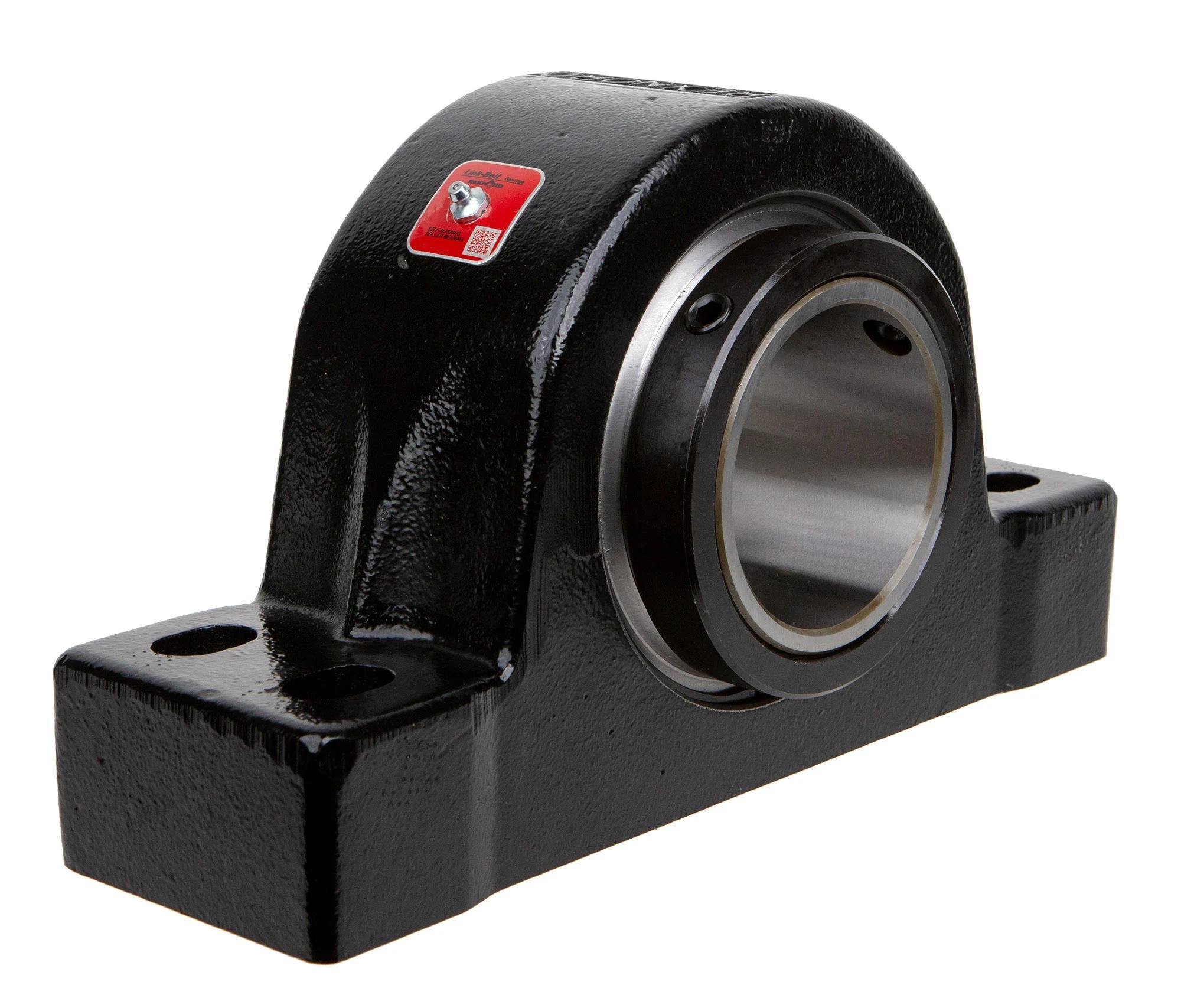

Link-Belt® 10406507 B22500 Pillow Block Spherical Roller Bearing, 3-7/16 in Dia Bore, 11-1/2 in L Bolt Center-to-Center, 4 in Base to Bore Centerline, 14-1/4 in OAL x 8 in OAH
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
-
BrandLink-Belt®
-
UPC662327111014
-
Manufacturer Part Number10406507
-
CountryUSA|Canada
-
Load Capacity62300 lb Dynamic/90700 lb Static
-
Locking DeviceDouble Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed1650 rpm
-
Mounting TypeFour-Bolt Base
-
Seal TypeClearance/Floating Labyrinth
-
SeriesB22500
-
Base Width5 in
-
Base to Bore Centerline4 in
-
Bolt Center-to-Center Length11-1/2 in
-
Bore Diameter3-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height8 in
-
Overall Length14-1/4 in
-
Overall Width5-5/16 in
- Two spring locking collars lock inner ring securely to shaft
- Long inner ring for high stability and load support
- Self aligning double row
- Double contoured retainer pockets
- Slotted bolt holes in pillow block
- Extended inner ring, separable outer rings
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Field interchangeable seals
-
Alternative Part NumberPB22555FH
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
