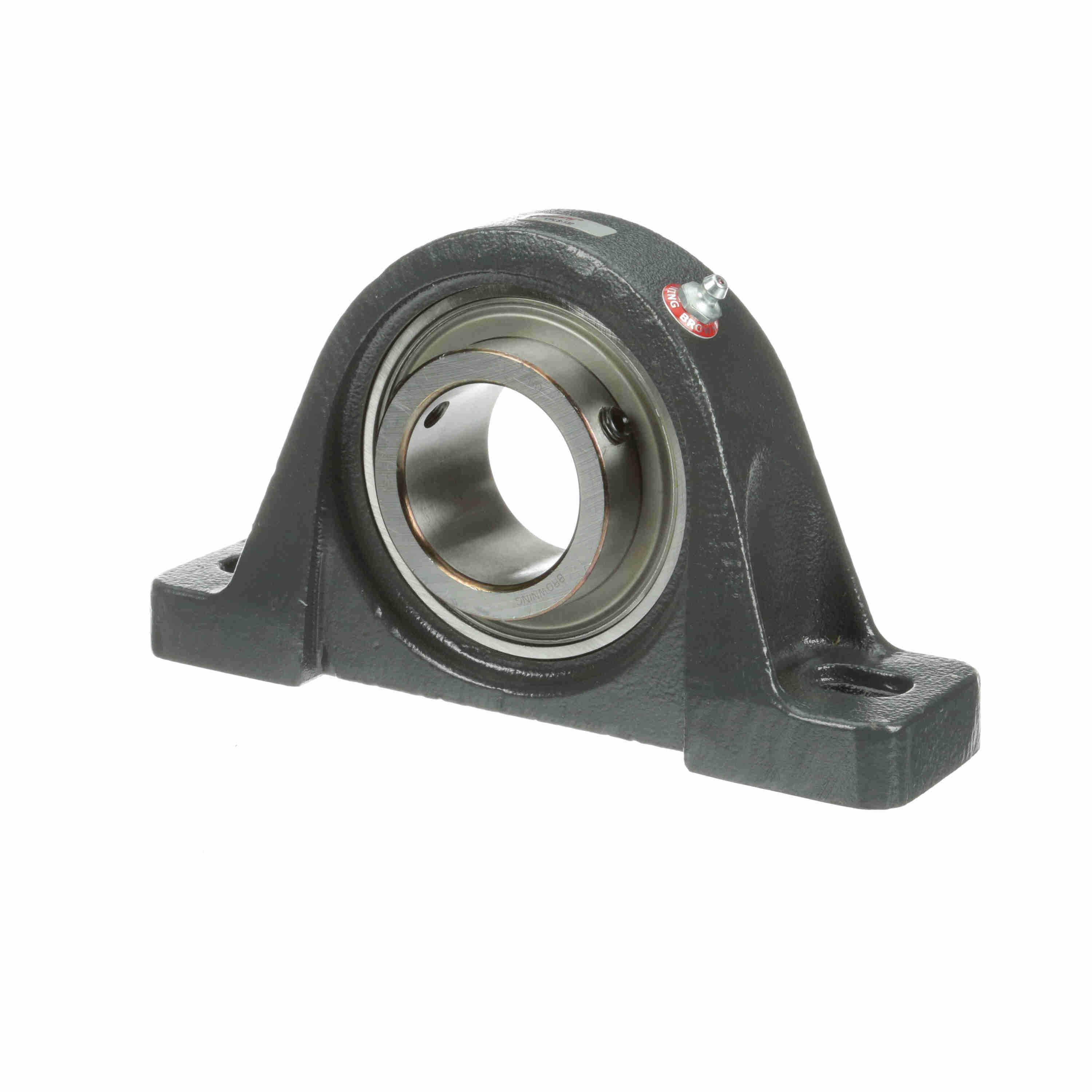

Browning® 767877 VPLS 100 Intermediate Duty Low Base Pillow Block Ball Bearing Unit, 2 in Dia Bore, 6-7/16 to 7-7/16 in L Bolt Center-to-Center, 2-7/16 in Base to Bore Centerline, 8-13/16 in OAL x 4-29/32 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289318773
-
Manufacturer Part Number767877
-
CountryUSA
-
Load Capacity9752 lb Dynamic/6601 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed1750 rpm
-
TypeIntermediate Duty Low Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPLS 100
-
Base Width2-5/16 in
-
Base to Bore Centerline2-7/16 in
-
Bolt Center-to-Center Length6-7/16 to 7-7/16 in
-
Bore Diameter2 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-29/32 in
-
Overall Length8-13/16 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
-
Alternative Part NumberVPLS-132
-
UNSPSC31171505
-
Package Description1/PK
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
-
Catalog
-
Specification Sheet
