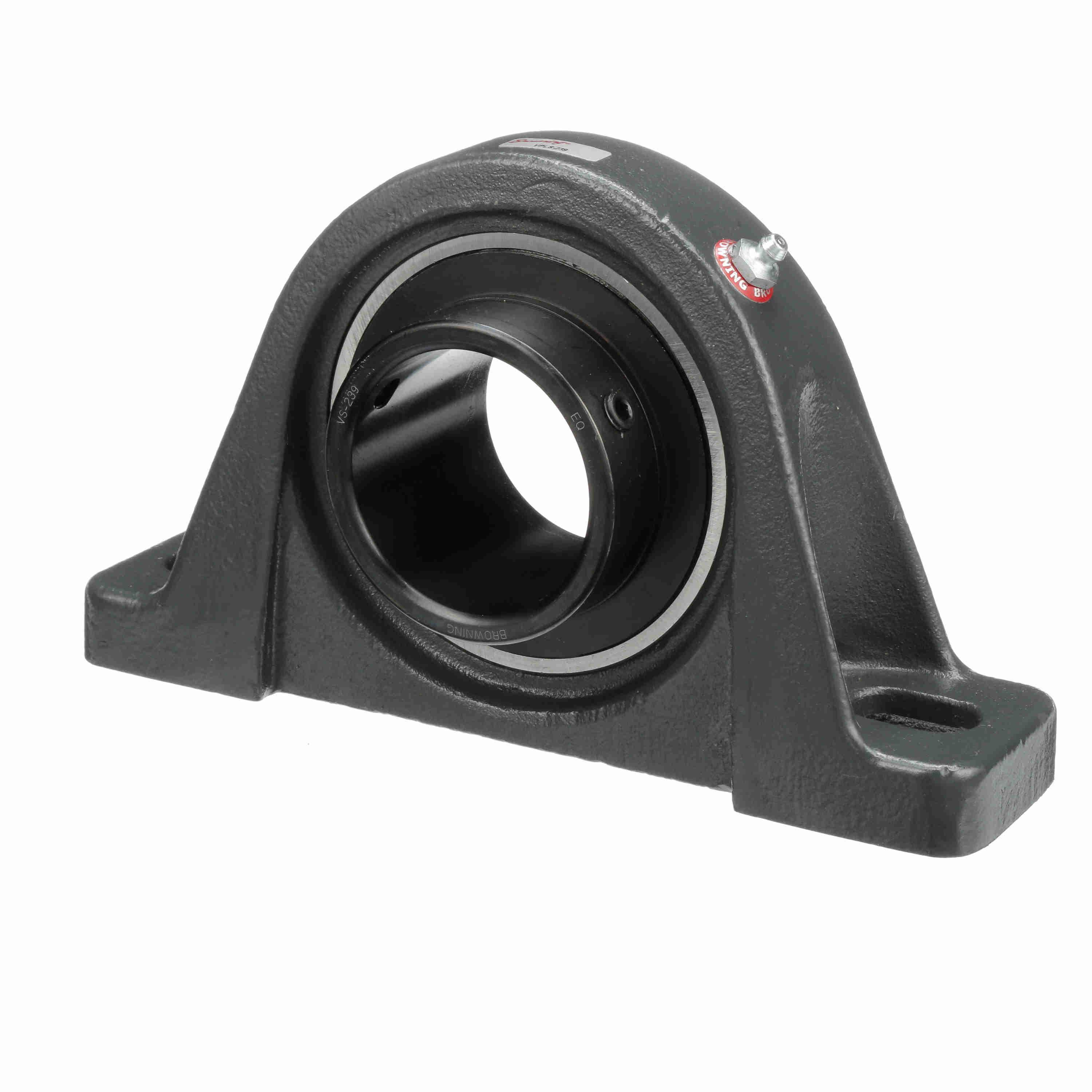

Browning® 765082 VPLS 200 Normal Duty Low Base Pillow Block Ball Bearing Unit, 2-7/16 in Dia Bore, 6-53/64 to 7-63/64 in L Bolt Center-to-Center, 2-11/16 in Base to Bore Centerline, 9-1/2 in OAL x 5-1/2 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289525140
-
Manufacturer Part Number765082
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed2500 rpm
-
TypeNormal Duty Low Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVPLS 200
-
Base Width2-3/8 in
-
Base to Bore Centerline2-11/16 in
-
Bolt Center-to-Center Length6-53/64 to 7-63/64 in
-
Bore Diameter2-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height5-1/2 in
-
Overall Length9-1/2 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVPLS-239
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
