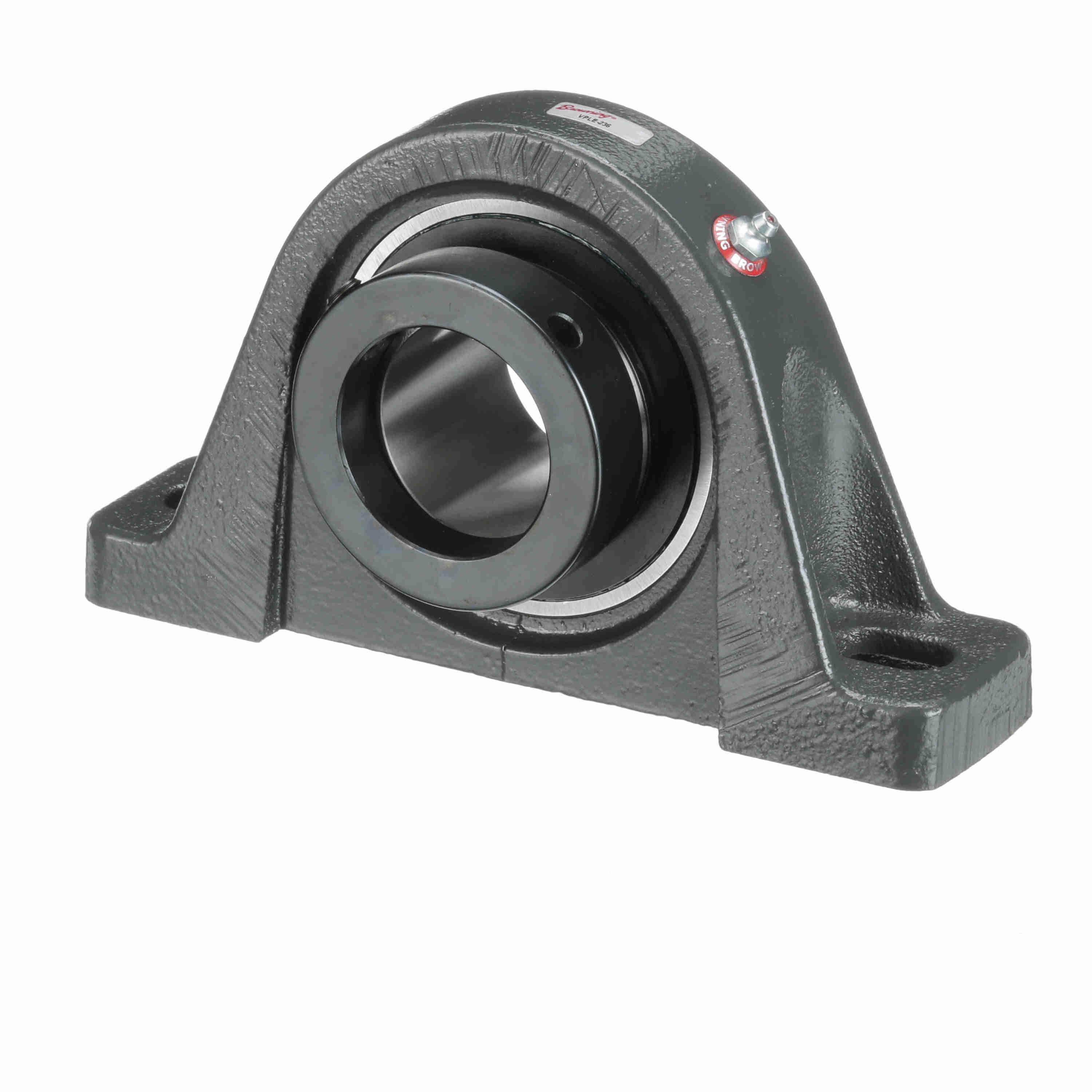

Browning® 765129 VPLE 200 Normal Duty Low Base Pillow Block Ball Bearing Unit, 2-1/4 in Dia Bore, 6-7/8 to 7-15/16 in L Bolt Center-to-Center, 2-11/16 in Base to Bore Centerline, 9-1/2 in OAL x 5-1/2 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289524457
-
Manufacturer Part Number765129
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed2500 rpm
-
TypeNormal Duty Low Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVPLE 200
-
Base Width2-3/8 in
-
Base to Bore Centerline2-11/16 in
-
Bolt Center-to-Center Length6-7/8 to 7-15/16 in
-
Bore Diameter2-1/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height5-1/2 in
-
Overall Length9-1/2 in
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVPLE-236
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
