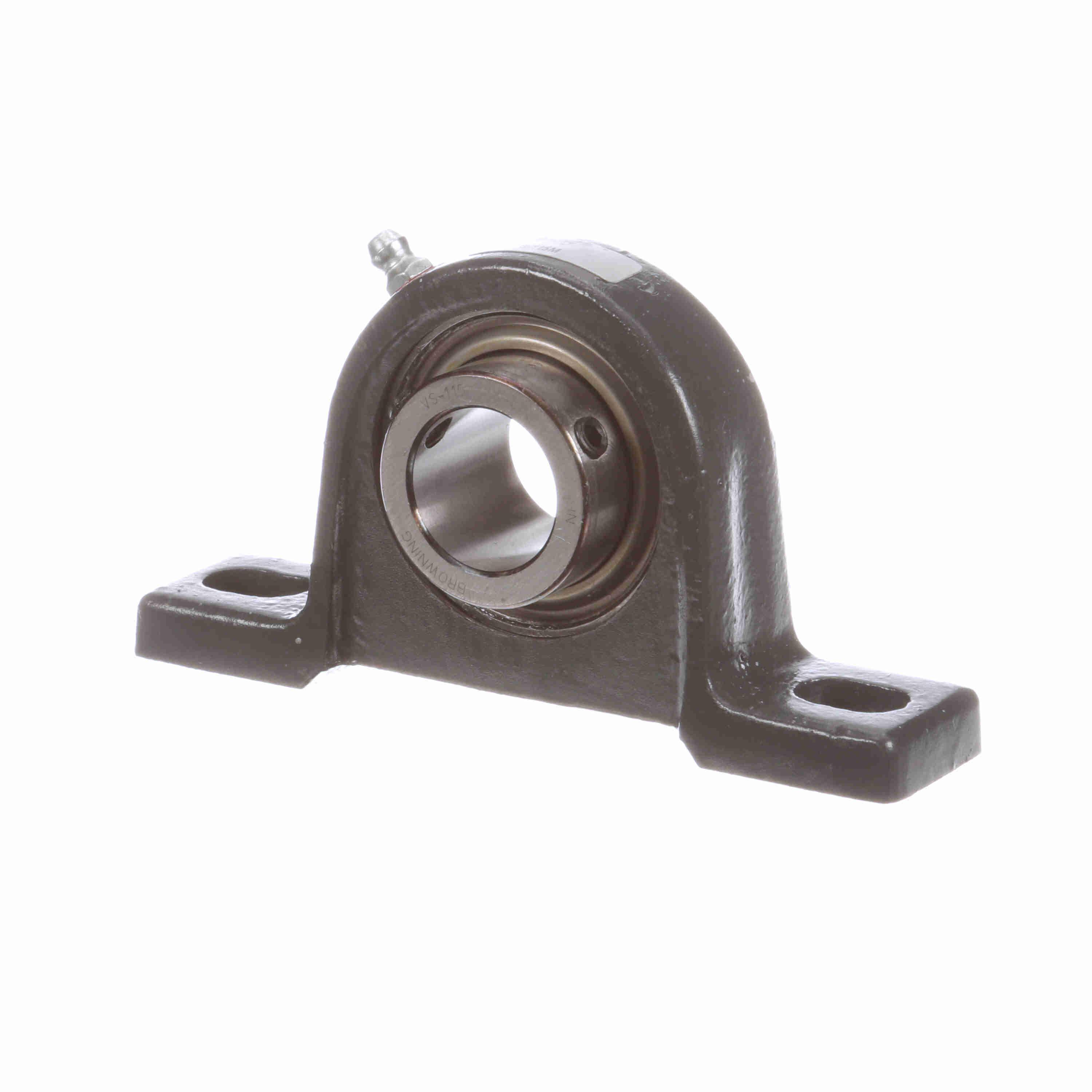

Browning® 767730 VPS 100 Intermediate Duty High Base Pillow Block Ball Bearing Unit, 15/16 in Dia Bore, 3-21/32 to 4-7/32 in L Bolt Center-to-Center, 1-7/16 in Base to Bore Centerline, 5 in OAL x 2-11/16 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289543342
-
Manufacturer Part Number767730
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialDuctile Iron
-
Maximum Speed3500 rpm
-
TypeIntermediate Duty High Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPS 100
-
Base Width1-1/8 in
-
Base to Bore Centerline1/7/2016 in
-
Bolt Center-to-Center Length3-21/32 to 4-7/32 in
-
Bore Diameter15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2/11/2016 in
-
Overall Length5 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
-
Alternative Part NumberVPS-115M
-
UNSPSC31171505
-
Package Description1/PK
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
