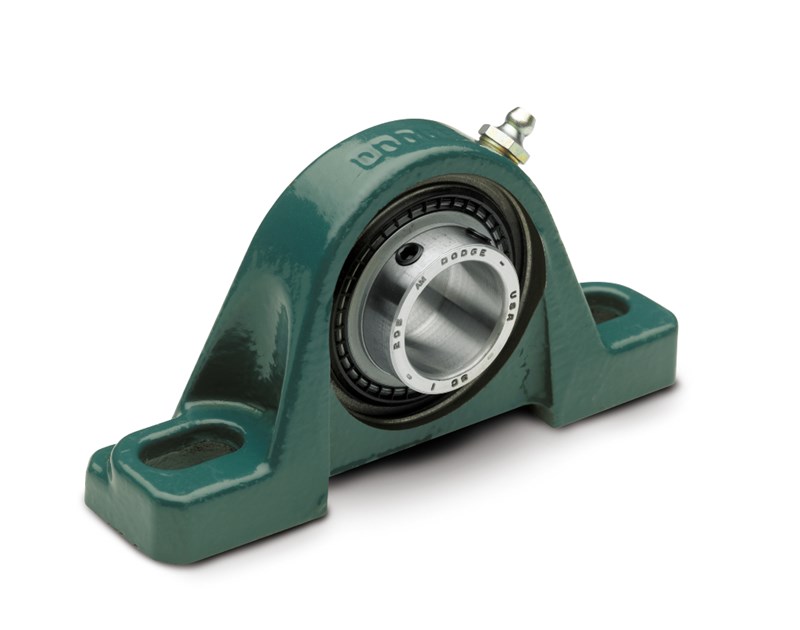

Dodge® 123872 210 Normal Duty Pillow Block Ball Bearing Unit, 1-15/16 in Dia Bore, 6 to 6.68 in L Bolt Center-to-Center, 2.19 in Base to Bore Centerline, 8.12 in OAL x 4.47 in OAH
For over 70 years, Dodge® has been talking to mounted bearing users and listening to their needs. This experience lead to the design of the optimum mounted ball bearing. A state-of-the-art facility was built to manufacture the new Dodge® design. The result is the Dodge® SC/SCM/SL line. Its premium features make it the most reliable setscrew mounted ball bearing on the market and provides the user unmatched quality and true total value.
-
BrandDodge®
-
UPC782475114184
-
Manufacturer Part Number123872
-
CountryUSA
-
Load Capacity7891 lb Dynamic/5213 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
MaterialSteel
-
Maximum Speed4500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series210
-
Base Width2-1/4 in
-
Base to Bore Centerline2.19 in
-
Bolt Center-to-Center Length6 to 6.68 in
-
Bore Diameter1-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.47 in
-
Overall Length8.12 in
-
Overall Width2-1/32 in
- Normal duty wide inner ring
- Stronger and more flexible cage
- Low backing height pillow block
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100939338 |
| Motion Industries | 00558926 |
-
Alternative Part NumberP2B-SCB-115
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
