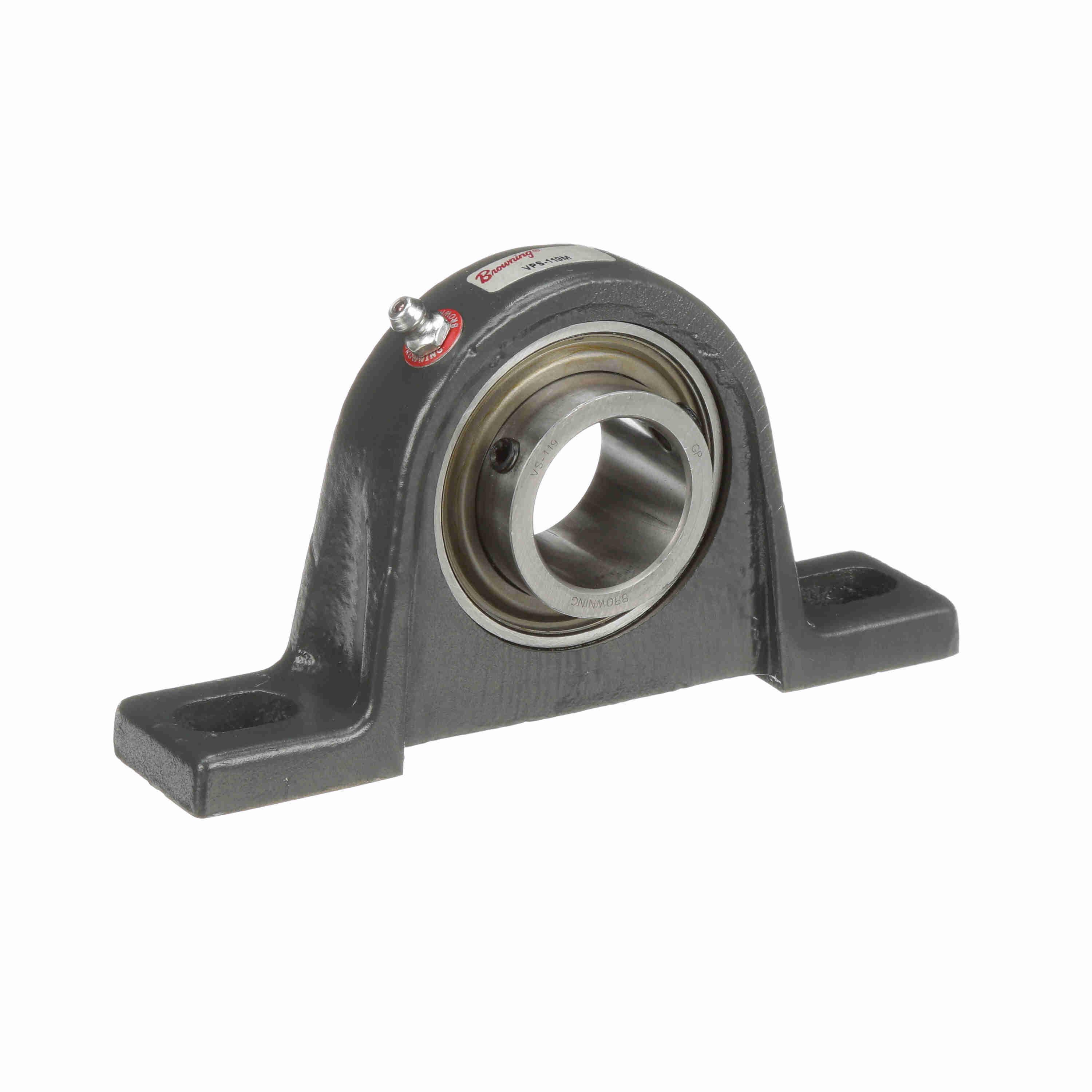

Browning® 767582 VPS 100 1-Piece Intermediate Duty Pillow Block Ball Bearing, 1-1/8 in Dia Bore, 4.72 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 5.94 in OAL x 3.16 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with set screw, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
-
BrandBrowning®
-
UPC662289543373
-
Manufacturer Part Number767582
-
CountryUSA
-
Load Capacity4381 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating200 deg F
-
FinishUncoated
-
Material52100 Steel
-
Maximum Speed3000 rpm
-
Type1-Piece Intermediate Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPS 100
-
Base Width1.31 in
-
Base to Bore Centerline1-11/16 in
-
Bolt Center-to-Center Length4.72 in
-
Bore Diameter1-1/8 in
-
Bore TypeStraight
-
Expansion TypeNon-Expansion
-
Overall Height3.16 in
-
Overall Length5.94 in
-
Overall Width1-5/32 in
-
Alternative Part NumberVPS-118M
-
UNSPSC31171511
-
Package DescriptionEACH
-
WarrantyLimited
-
