Sealmaster 1-3/4"-ID TRB CARTRIDGE BEARINGS SEA RCI-112

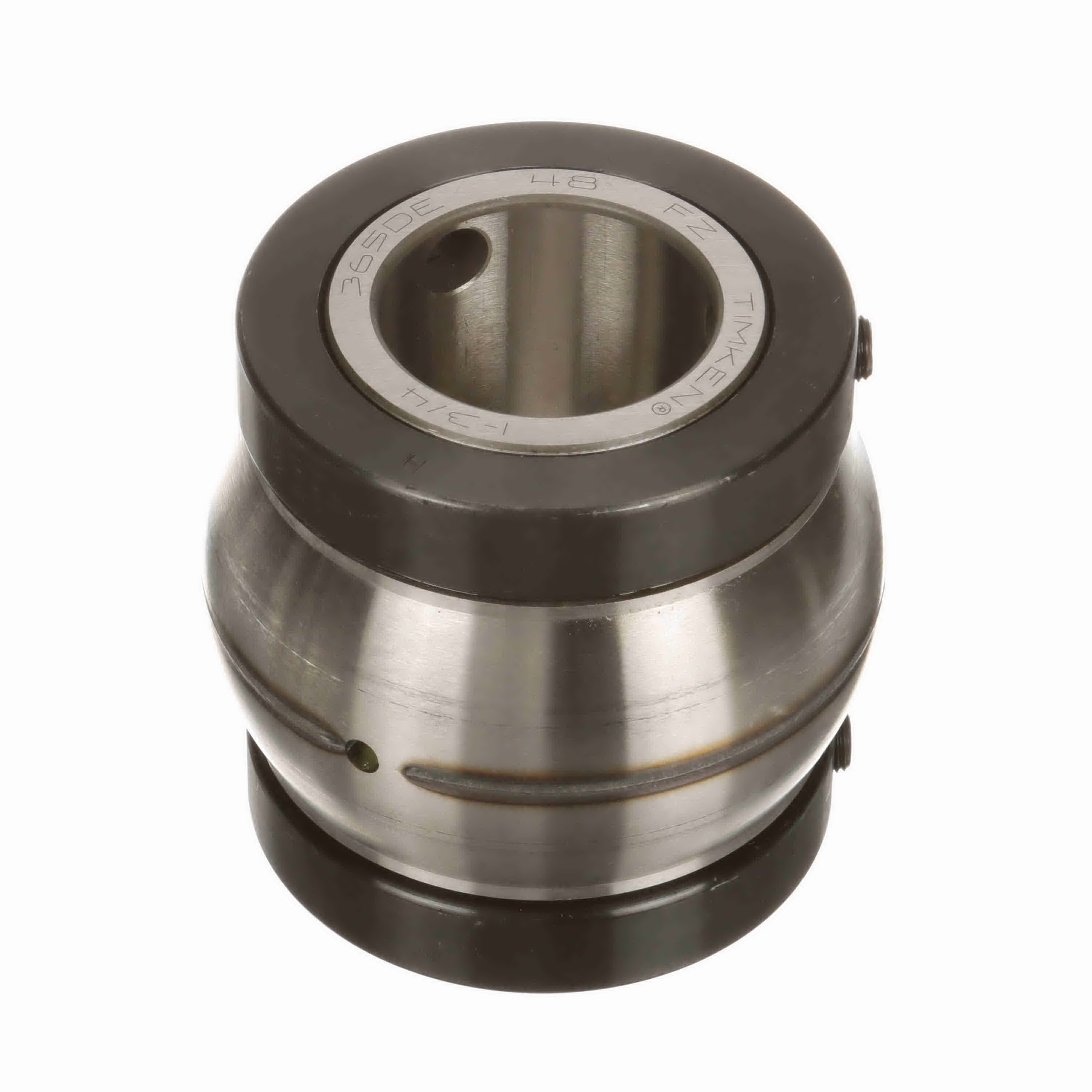

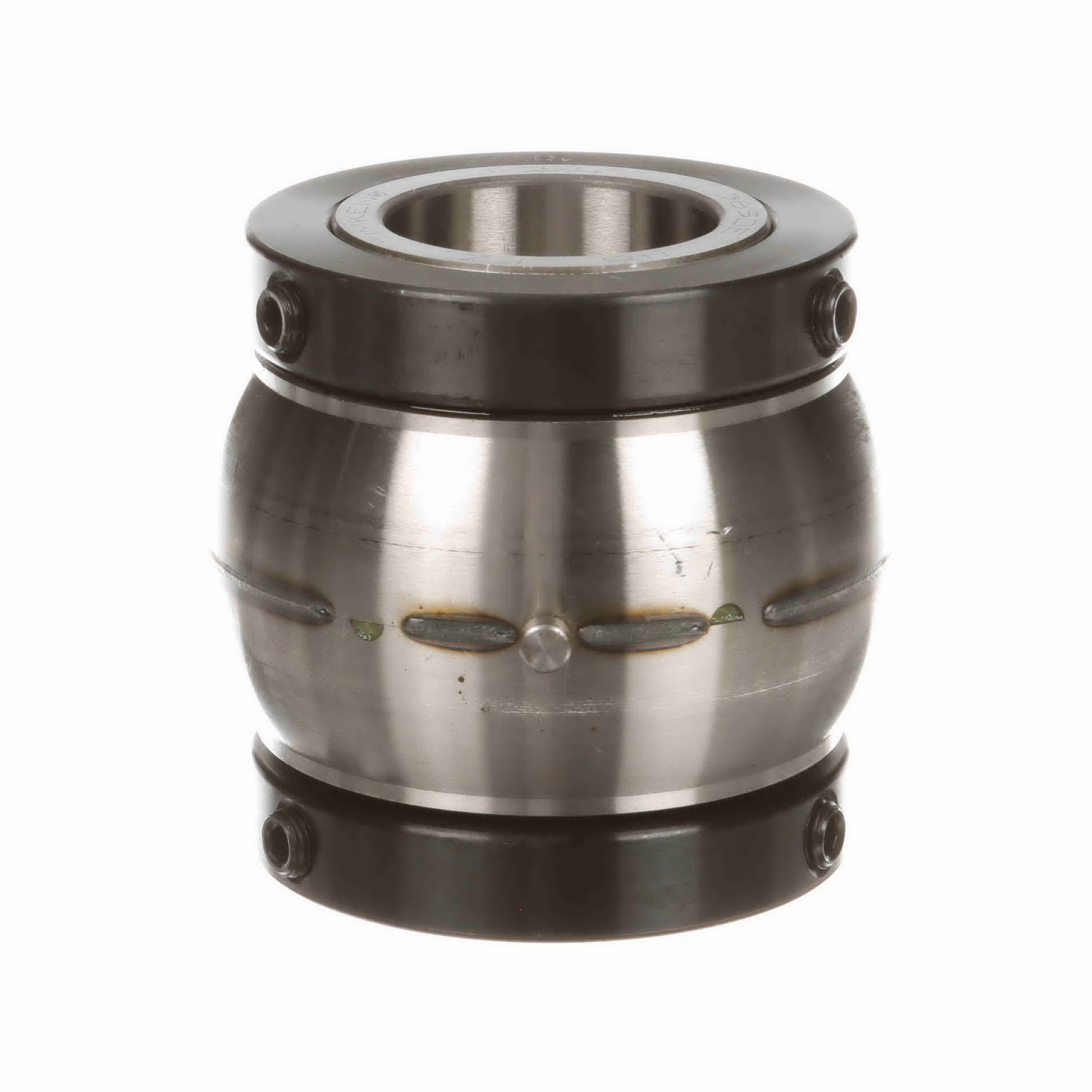

Sealmaster® 550102 RCI Mounted Tapered Roller Insert Only, 1-3/4 in Dia Bore, 3.687 in OD, 3-1/2 in W
-
BrandSealmaster®
-
UPC662288479406
-
Manufacturer Part Number550102
-
CountryUSA
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Maximum Speed2500 rpm
-
Width3-1/2 in
-
SeriesRCI
-
Bearing Material52100 Steel
-
Outside Diameter3.687 in
-
Bore Diameter1-3/4 in
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
-
Alternative Part NumberRCI 112
-
UNSPSC31171536
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Instruction/Installation Manual
