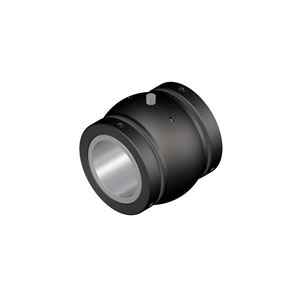

Sealmaster® 550661 Non-Expansion Straight Bore Replacement Cartridge Insert, 1.938 in Dia Bore, 3.687 in OD, 3-1/2 in W, 8070 lb Dynamic Load
The heart of the RPB is the unitized, self-aligning cartridge insert with integral seals and double locking collars. The replaceable cartridge insert can accommodate +/- 3 deg static misalignment and is factory sealed and lubricated. The cartridges fit all housing styles and are field replaceable for quick change out. RCI outer races are black oxide treated.
-
BrandSealmaster®
-
UPC662288480792
-
Manufacturer Part Number550661
-
CountryUSA
-
Load Capacity8070 lb Dynamic
-
Temperature Rating225 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed2500 rpm
-
TypeNon-Expansion Straight Bore
-
Seal MaterialRubber
-
Width3-1/2 in
-
SeriesRCI
-
Bearing Material52100 Steel
-
Outside Diameter3.687 in
-
Bore Diameter1.938 in
- Race-mounted contact flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Metal land riding retainer type
-
Alternative Part NumberRCI 115C
-
UNSPSC31171536
-
Package DescriptionEACH
-
Standards/ApprovalsRBEC 1 Standard
-
Catalog
-
Instruction/Installation Manual
