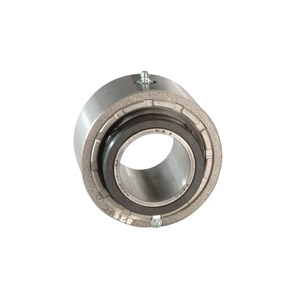

Link-Belt® 10423901 B22400 Fixed Mounted Cartridge Block Spherical Roller Bearing, 60 mm Bore Dia, 127 mm OD, 2 Rows, 89.7 mm W, 170367 N Dynamic/237980 N Static Load
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
-
BrandLink-Belt®
-
UPC662327404307
-
Manufacturer Part Number10423901
-
CountryUSA|Canada
-
Load Capacity170367 N Dynamic/237980 N Static
-
Temperature Rating-40 to 400 deg F
-
FinishPowder Coated
-
Maximum Speed2300 rpm
-
TypeFixed Mounted
-
Width89.7 mm
-
SeriesB22400
-
Number of Rows2
-
Outside Diameter127 mm
-
Bore Diameter60 mm
- Spring locking collar locks inner ring securely to shaft
- Clearance seal
- Long inner ring for high stability and load support
- Self aligning double row
- Double contoured retainer pockets
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Cast iron cartridge block
-
Alternative Part NumberCB224M60H
-
UNSPSC31171535
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
