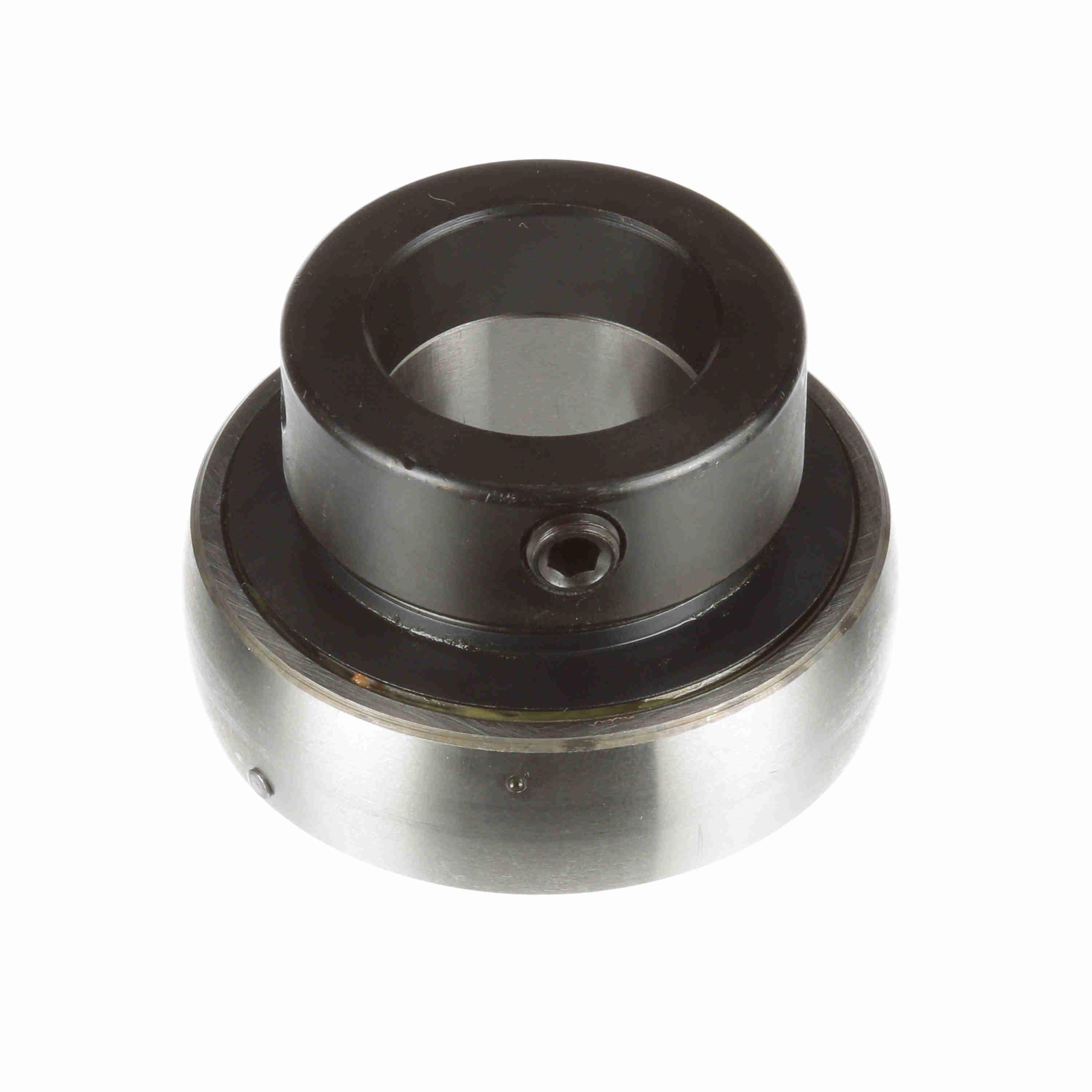

Browning 3/4"-ID SPH/OD INSERT BEARINGS BRW VE-212
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289519521
-
Manufacturer Part Number767819
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed6500 rpm
-
Closure TypeDouble Seal
-
TypeStandard Duty Straight Bore
-
Width1.719 in
-
SeriesVE Series
-
Bearing MaterialSteel
-
Outside Diameter1.85 in
-
Bore Diameter3/4 in
- Eccentric locking device
- Contact seal
- Thru hardened inner race heat treat method
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
-
Alternative Part NumberVE-212
-
UNSPSC31171504
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
-
Catalog
