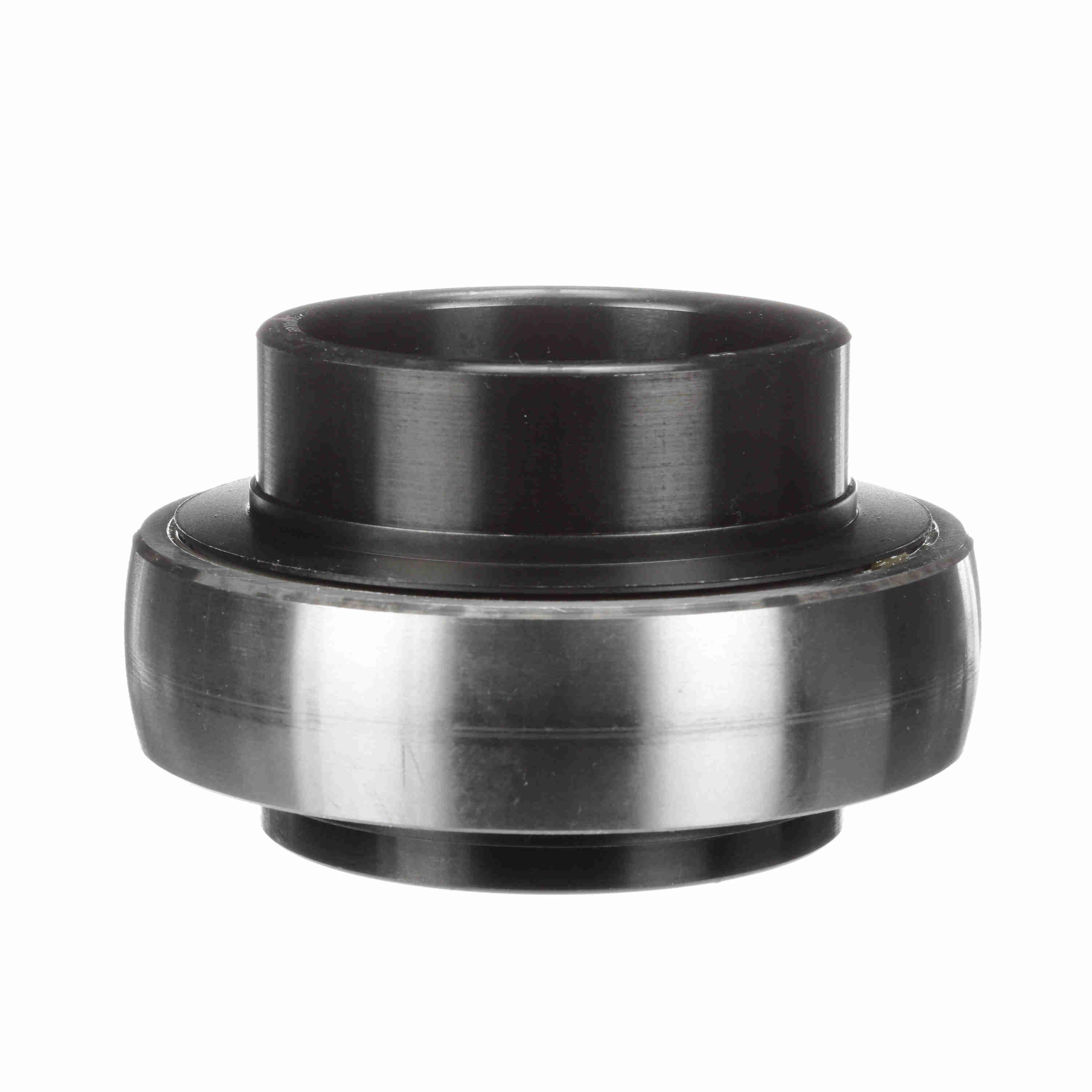

Browning® 765122 VS Series Standard Duty Straight Bore Ball Bearing Insert With Seal Flinger, 2.438 in Dia Bore, 4.331 in OD, 2.563 in W, 13971 lb Dynamic/10063 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289526499
-
Manufacturer Part Number765122
-
CountryUSA
-
Load Capacity13971 lb Dynamic/10063 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed2500 rpm
-
Closure TypeDouble Seal
-
TypeStandard Duty Straight Bore
-
Width2.563 in
-
SeriesVS Series
-
Bearing MaterialSteel
-
Outside Diameter4.331 in
-
Bore Diameter2.438 in
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
- Browning bearing insert with lubrication hole and anti-rotation rivet_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
-
Alternative Part NumberVS-239
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Warranty Information
-
Instruction/Installation Manual
-
Specification Sheet
