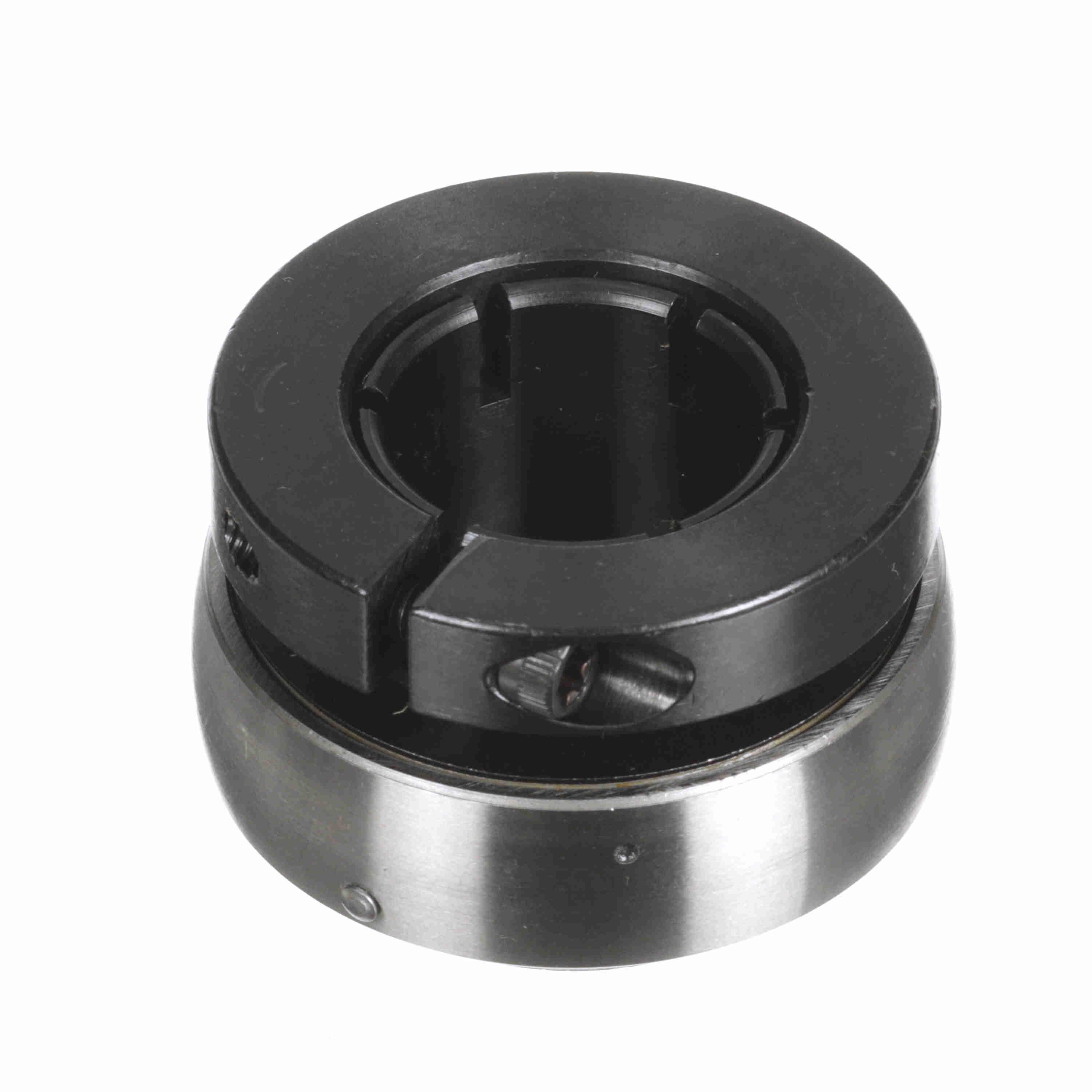

Browning 1"-ID INSERT BEARINGS BRW VB-216
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460345642
-
Manufacturer Part Number764026
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed5500 rpm
-
Closure TypeDouble Seal
-
TypeStandard Duty Straight Bore
-
Width1.438 in
-
SeriesVB 200
-
Bearing MaterialSteel
-
Outside Diameter2.047 in
-
Bore Diameter1 in
- BOA concentric collar locking
- Single lip contact seal
- Zone hardened inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
-
Alternative Part NumberVB-216
-
UNSPSC31171504
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
