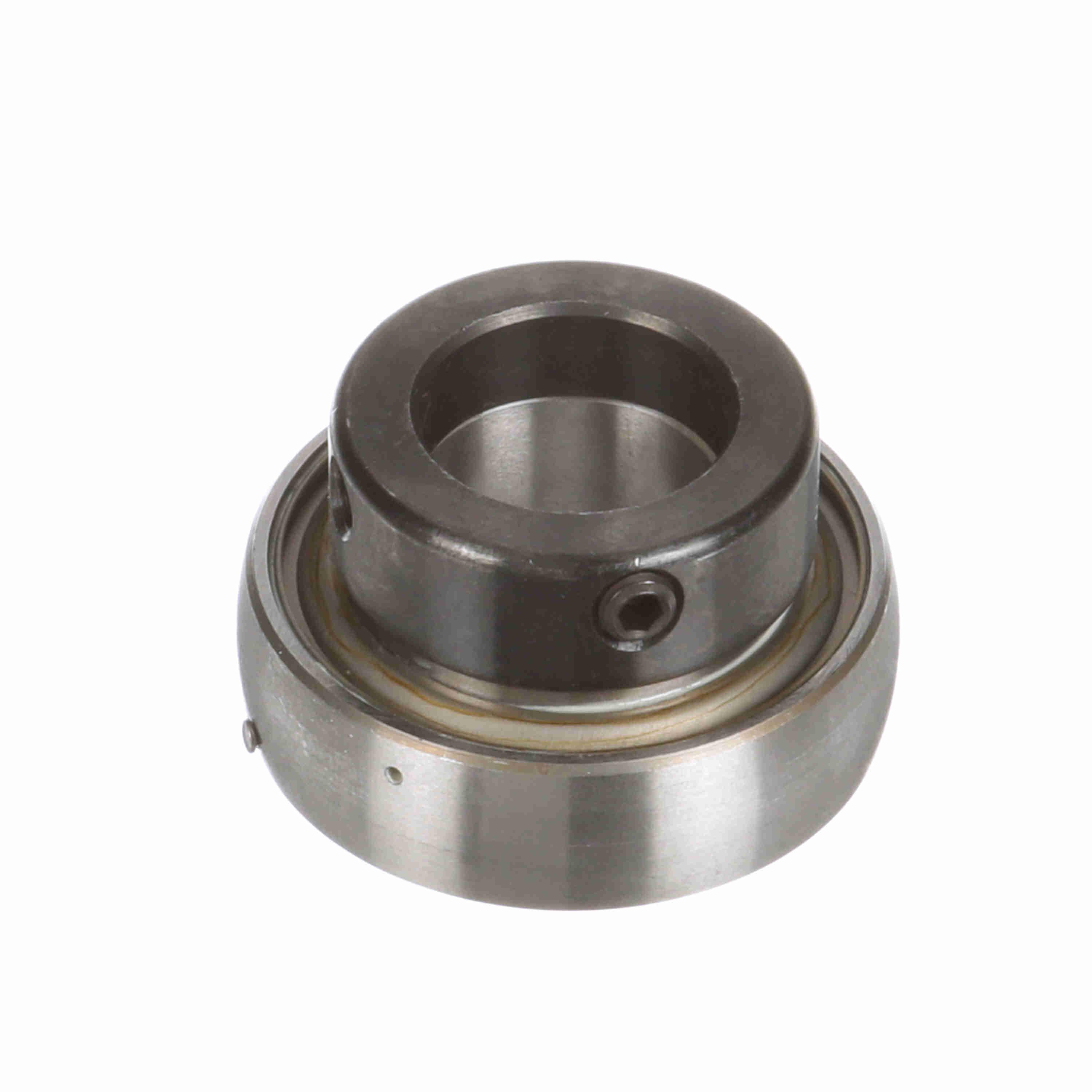

Browning® 767765 VE 100 Light Duty Straight Bore Ball Bearing Insert, 15/16 in Dia Bore, 2.0472 in OD, 1-17/64 in W, 2801 lb Dynamic/1651 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289519408
-
Manufacturer Part Number767765
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3500 rpm
-
Closure TypeDouble Seal
-
TypeLight Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width1-17/64 in
-
SeriesVE 100
-
Bearing MaterialSteel
-
Outside Diameter2.0472 in
-
Bore Diameter15/16 in
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing thru hardening inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outside diameter
- Without Snap Ring
-
Alternative Part NumberVE-115
-
UNSPSC31171537
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
