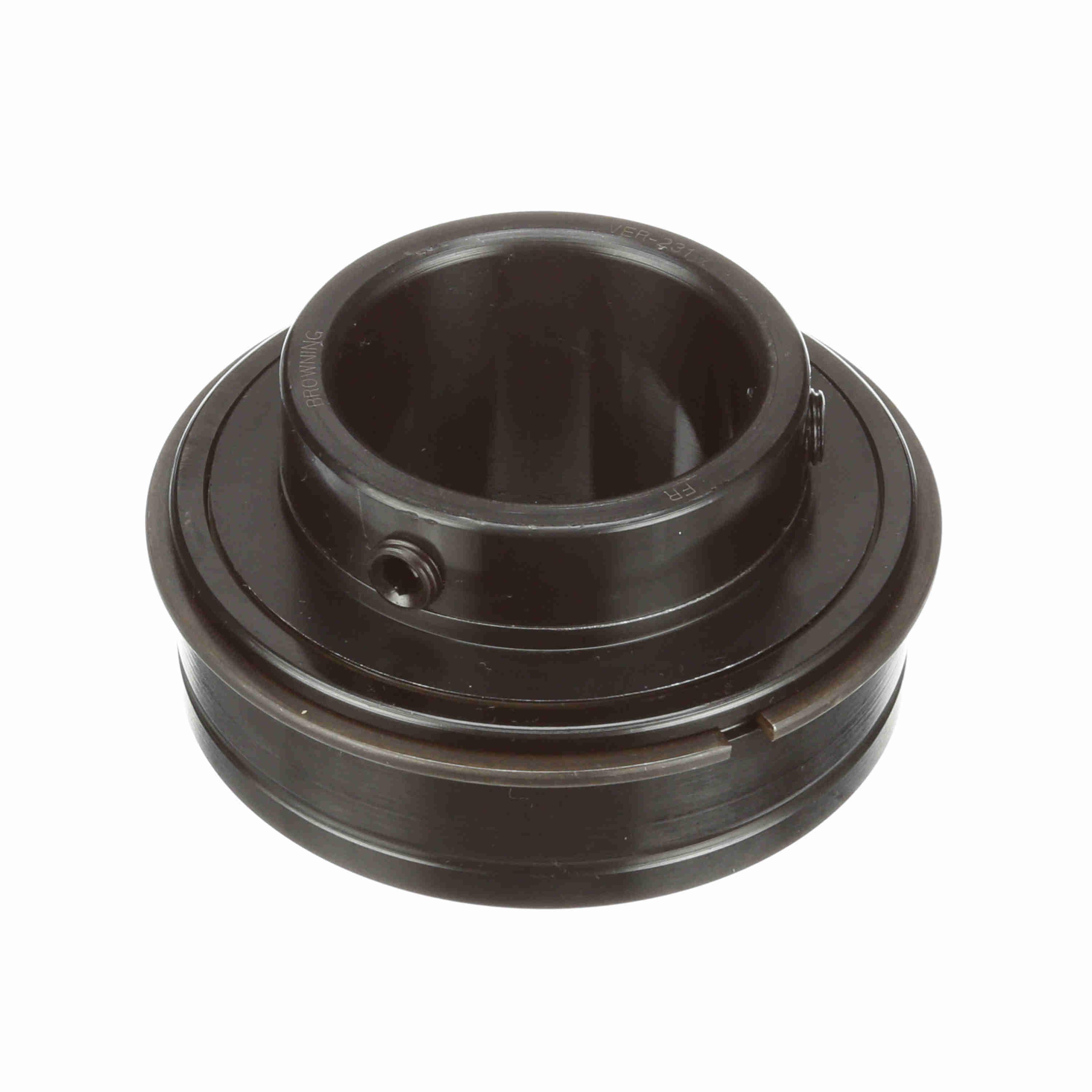

Browning® 765309 VER 200 Standard-Duty Straight Bore Ball Bearing Insert With Seal Flinger and Snap Ring, 1.938 in Dia Bore, 3.781 in OD, 1 Rows, 2.031 in W, 7889 lb Dynamic/5216 lb Static Load
Browning® VER bearings feature black oxide treated inner and outer rings and extended inner race bearing with ball riding nylon retainer. Shaft lock is achieved by 120 deg spaced diamond faceted setscrew locking. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289859733
-
Manufacturer Part Number765309
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3000 rpm
-
Closure TypeDouble Seal
-
TypeStandard-Duty Straight Bore
-
Seal MaterialRubber
-
Width2.031 in
-
SeriesVER 200
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter3.781 in
-
Bore Diameter1.938 in
- Single setscrew locking
- Single lip contact seal
- Zone hardened inner race
- Browning® VER bearings have the part number laser marked on the inner ring for easy verification of the part number during installation and for replacement
- Cylindrical outer diameter
- Relube through groove in outer diameter
-
Alternative Part NumberVER-231
-
UNSPSC31171504
-
Warranty1 Year
-
Package DescriptionEACH
-
Warranty Information
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
