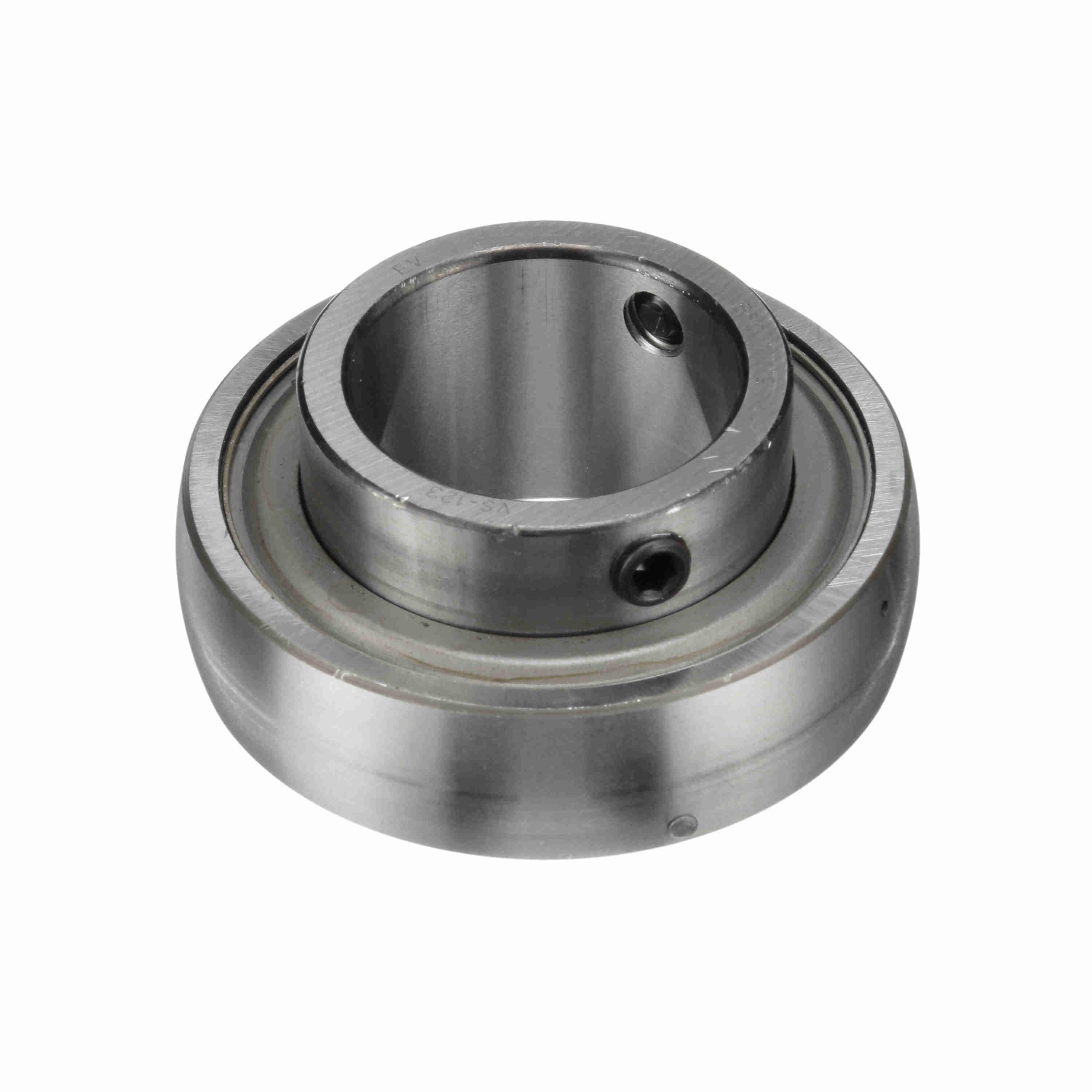

Browning 1-7/16"-ID SPH/OD INSERT BEARINGS BRW VS-123
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289526185
-
Manufacturer Part Number767751
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed2500 rpm
-
Closure TypeDouble Seal
-
TypeIntermediate Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width1-9/32 in
-
SeriesVS 100
-
Bearing MaterialSteel
-
Outside Diameter2.8346 in
-
Bore Diameter1-7/16 in
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
- Without Snap Ring
- Browning bearing insert with lubrication hole and anti-rotation rivet_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberVS-123
-
UNSPSC31171537
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
