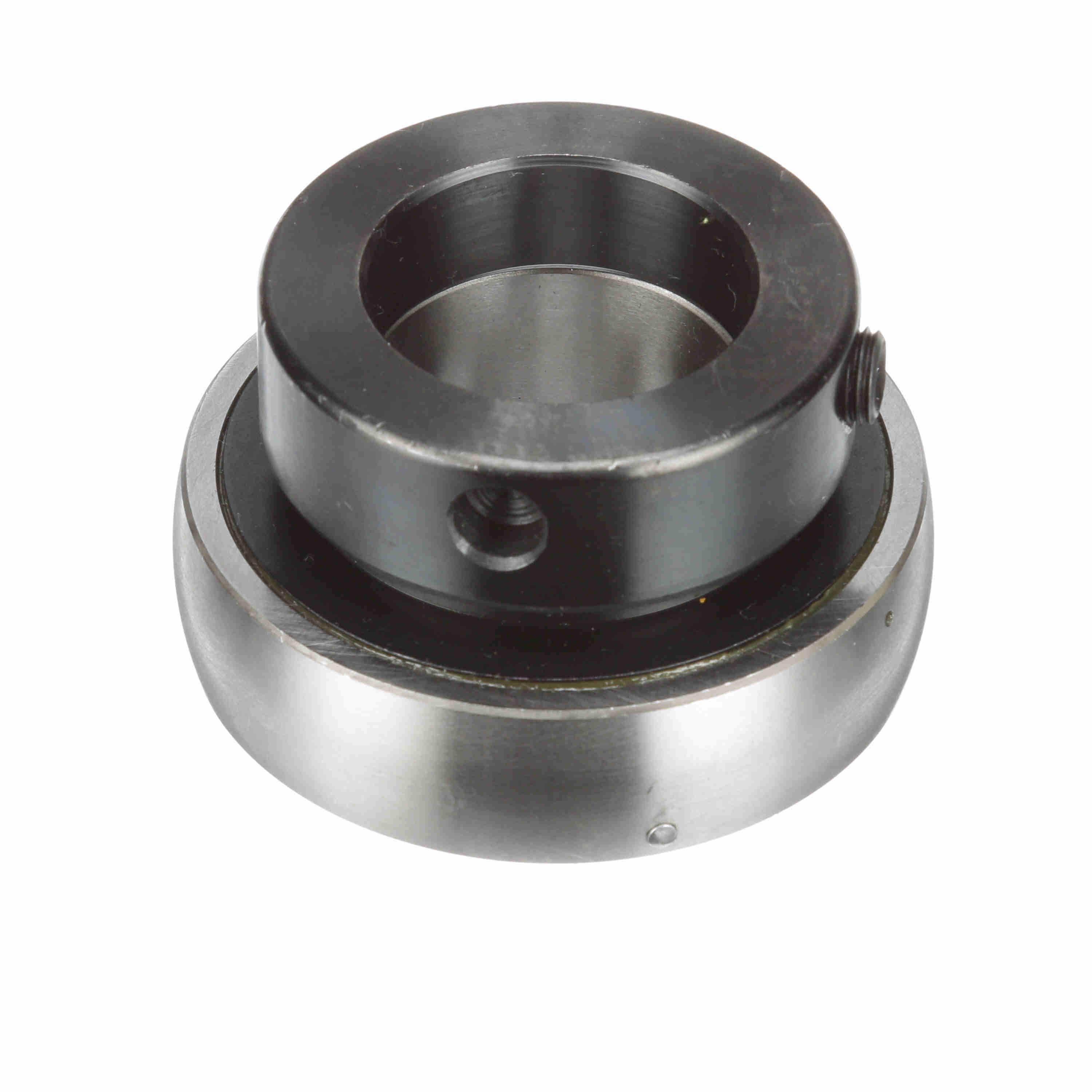

Browning® 767852 VE Series Standard Duty Straight Bore Ball Bearing Insert With Seal Flinger, 1-3/8 in Dia Bore, 2.835 in OD, 2.016 in W, 5782 lb Dynamic/3493 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289519613
-
Manufacturer Part Number767852
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed4000 rpm
-
Closure TypeDouble Seal
-
TypeStandard Duty Straight Bore
-
Width2.016 in
-
SeriesVE Series
-
Bearing MaterialSteel
-
Outside Diameter2.835 in
-
Bore Diameter1-3/8 in
- Eccentric locking device
- Contact seal
- Thru hardened inner race heat treat method
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
-
Alternative Part NumberVE-222
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
