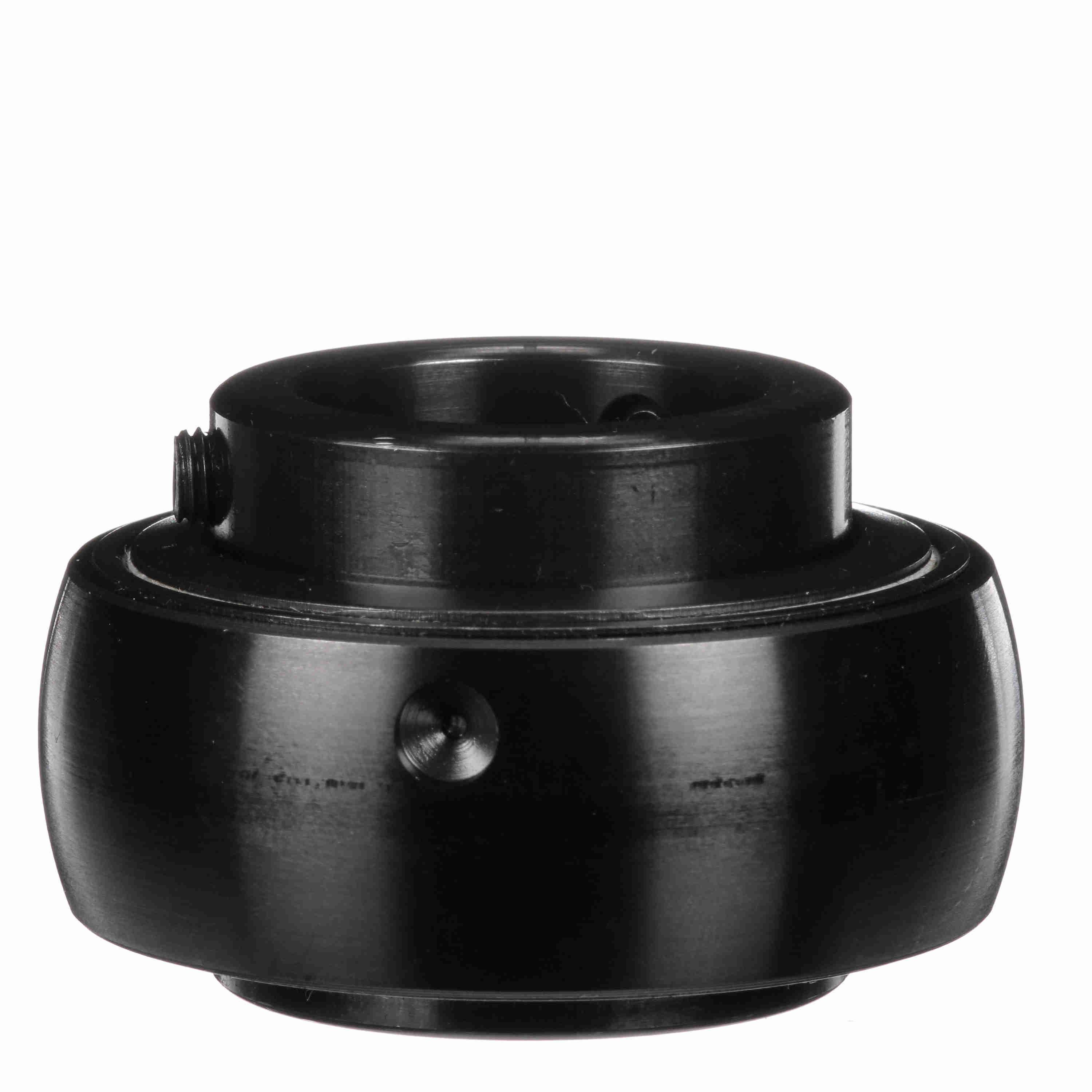

Sealmaster 1-1/8"-ID SPH/OD BB INSERT BEARING SEA 2-12
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461000168
-
Manufacturer Part Number700018
-
CountryUSA
-
Load Capacity4381 lb Dynamic/2567 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed5450 rpm
-
Closure TypeDouble Seal
-
TypeNon-Expansion Standard Duty Straight Bore
-
Seal MaterialFelt
-
Width1-1/2 in
-
Bearing MaterialSteel
-
Outside Diameter2.4409 in
-
Bore Diameter1-1/8 in
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
-
Alternative Part Number2-12
-
UNSPSC31171537
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
