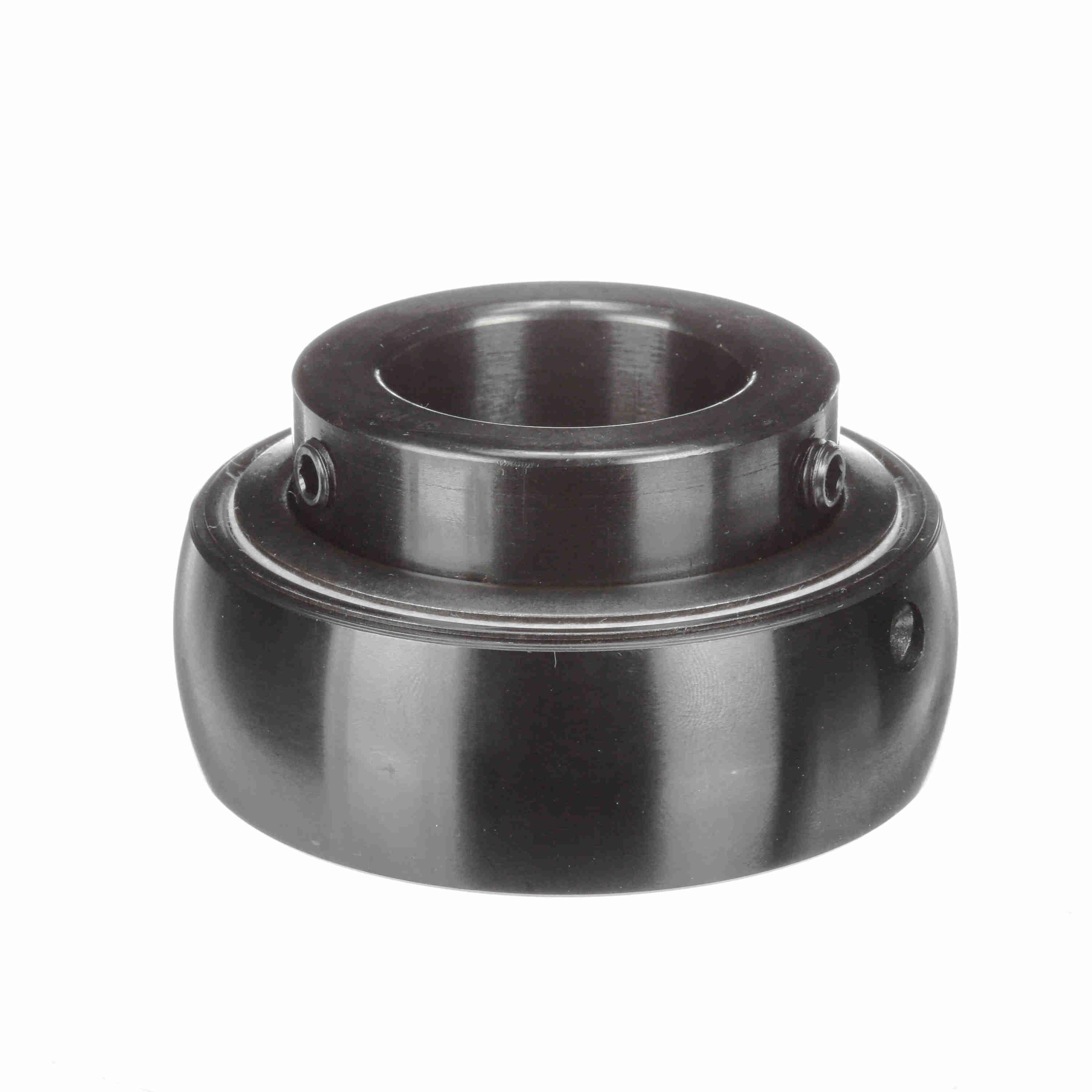

Sealmaster 1-1/2"-ID SPH/OD BB INSERT BEARING SEA 3-18
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461000663
-
Manufacturer Part Number700075
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3800 rpm
-
Closure TypeDouble Seal
-
TypeMedium Duty Non-Expansion Straight Bore
-
Seal MaterialFelt
-
Width1-15/16 in
-
Bearing MaterialSteel
-
Outside Diameter3.3465 in
-
Bore Diameter1-1/2 in
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
-
Alternative Part Number3-18
-
UNSPSC31171537
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
