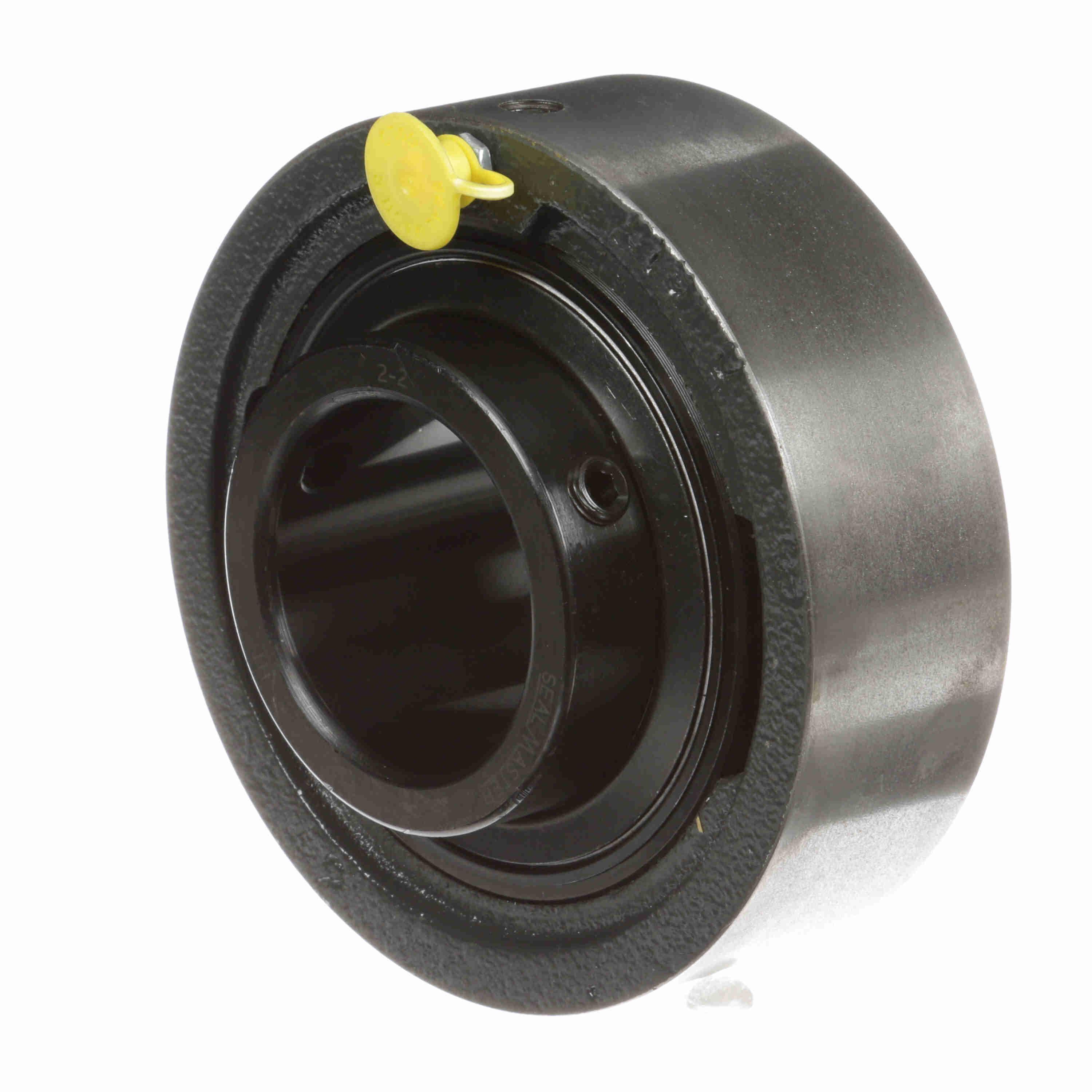

Sealmaster 2"-ID CAST CARTRIDGE BEARINGS SEA SC-32
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461002575
-
Manufacturer Part Number700337
-
CountryUSA
-
Load Capacity9752 lb Dynamic/6601 lb Static
-
Cage MaterialBrass
-
Temperature Rating250 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3250 rpm
-
TypeNon-Expansion Standard Duty
-
Seal MaterialFelt
-
Width2-3/16 in
-
SeriesSC Series
-
Bearing MaterialSteel
-
Outside Diameter4.938 in
-
Bore Diameter2 in
- Cylindrical cartridge housing unit
- Wide outer race
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Powder coated epoxy cast iron cylindrical
- O.D. housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSC-32
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
