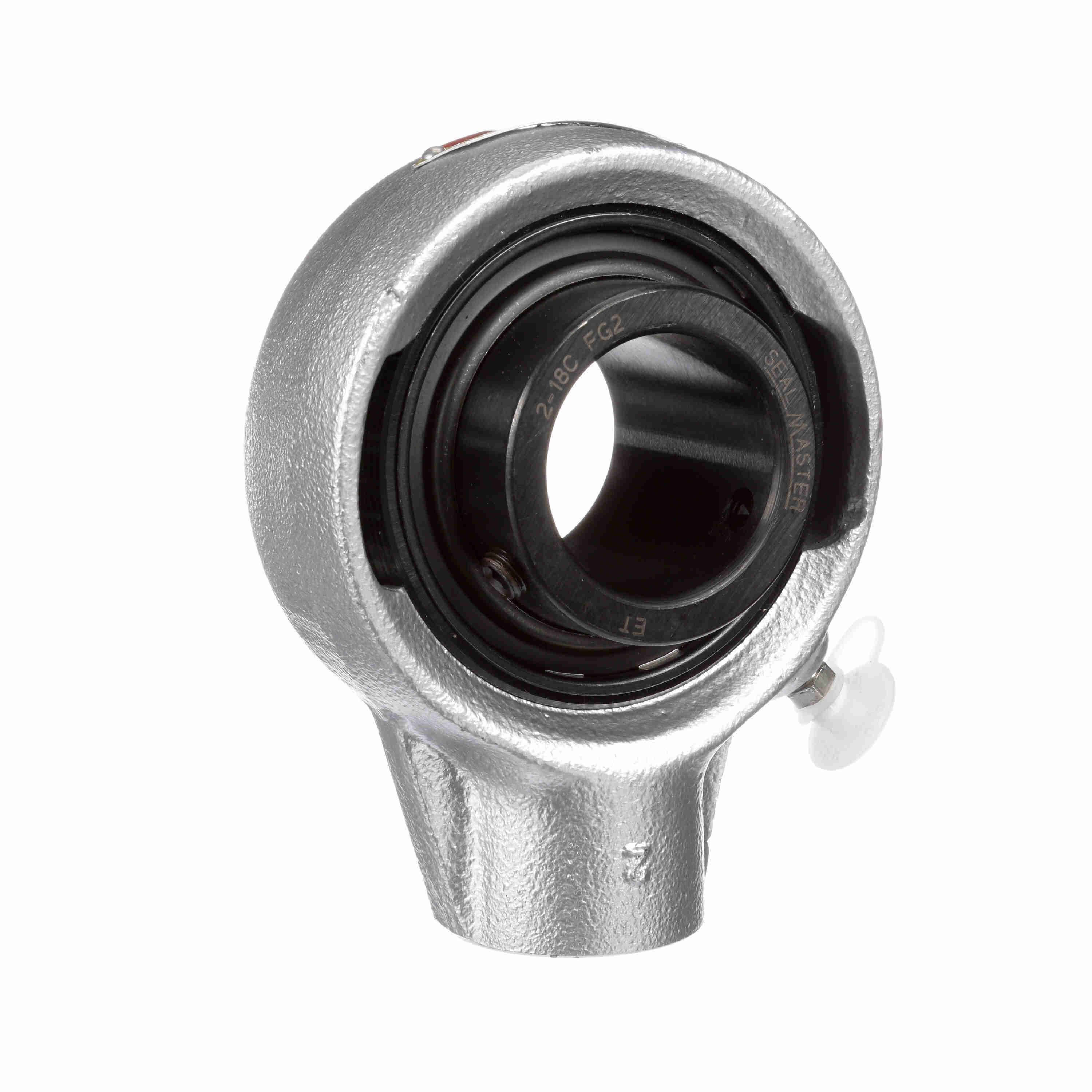

Sealmaster 1-7/16"CORROSION RESIST HANGER BRG SEA SEHB-23-C-CR
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461239674
-
Manufacturer Part Number702643
-
CountryUSA
-
Load Capacity7340 lb Dynamic/4467 lb Static
-
Locking TypeSet Screw Collar
-
Cage MaterialMetal
-
Temperature Rating250 deg F
-
FinishFluoropolymer Coated
-
Maximum Speed4150 rpm
-
TypeStandard-Duty
-
Seal MaterialNitrile Rubber
-
Width1.94 in
-
SeriesSEHB
-
Bearing MaterialCast Iron
-
Outside Diameter3-3/4 in
-
Bore Diameter1.44 in
- Wide outer race
- Lock pin and dimple system
- Zone hardened inner race
- Metal land riding retainer type
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
- Ball bearing rolling element
- Without seal flinger
- Contact seal type
-
Alternative Part NumberSEHB-23C CR
-
UNSPSC31171515
-
Package Description1/PK
-
