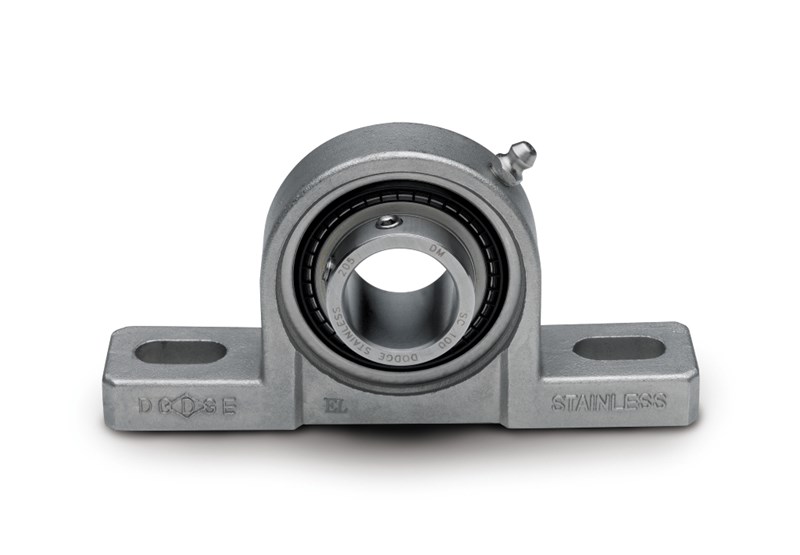

Dodge® E-Z-Kleen® 136989 210 Normal Duty Pillow Block Ball Bearing With Insert, 2 in Dia Bore, 5.76 to 6.68 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8 in OAL x 4.31 in OAH
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.
-
BrandDodge®
-
UPC782476477998
-
Manufacturer Part Number136989
-
CountryUSA
-
Load Capacity7891 lb Dynamic/4450 lb Static
-
Locking Device65 deg Set Screw
-
FinishUncoated
-
MaterialStainless Steel
-
Maximum Speed5500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeTriple Lip
-
Series210
-
Base Width1.63 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length5.76 to 6.68 in
-
Bore Diameter2 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.31 in
-
Overall Length8 in
-
Overall Width1.94 in
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Grade 10 balls
- Wide inner ring design
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard™ triple lip seal features a rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and retain grease during high pressure washdown
- H1 registered food grade lubricant
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101634628 |
| Motion Industries | 04602156 |
-
Alternative Part NumberP2B-SCEZ-200-SHSS
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsFDA/USDA Compliant|UL Listed
-
WarrantyLimited
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
-
Owners/User Manual
-
Warranty Information
