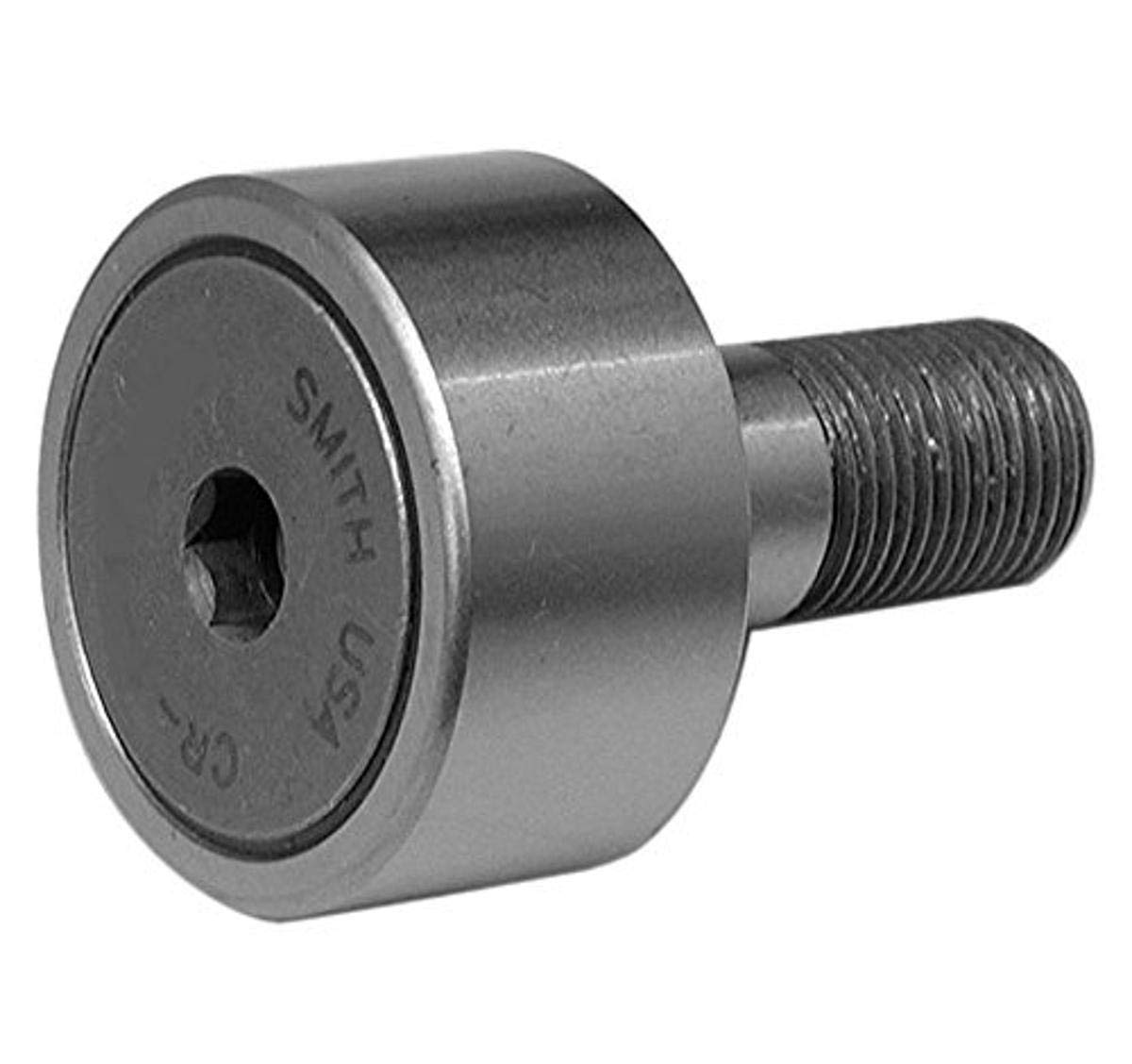

Smith BearingĀ® HR-2-XB Cylindrical Stud Type Needle Bearing Cam Follower, 2 in Dia x 1-1/4 in W Roller, 1-1/8 in Dia x 2 in L Stud, 52100 Steel Roller
The HR Series have a larger diameter stud and are recommended for applications with high running loads and/or heavy shocks where deflection should be held to a minimum. Rollers and outer races are identical to the standard CR Series. Manufactured from high alloy bearing quality steel.
-
BrandSmith BearingĀ®
-
UPC651041128873
-
Manufacturer Part NumberHR-2-XB
-
CountryUSA
-
Load Capacity10050 lb Dynamic/22000 lb Static
-
Thread Length1 in
-
Thread Size1-1/8-12 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter2 in
-
Roller Material52100 Steel
-
Roller Width1-1/4 in
-
Head TypeHex Socket
-
SeriesHR-XB
-
Stud Diameter1-1/8 in
-
Stud Length2 in
-
Stud TypeHeavy
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 11Y058 |
-
UNSPSC31171530
-
Warranty12 months
-
Catalog
-
Full Engineering Drawing
