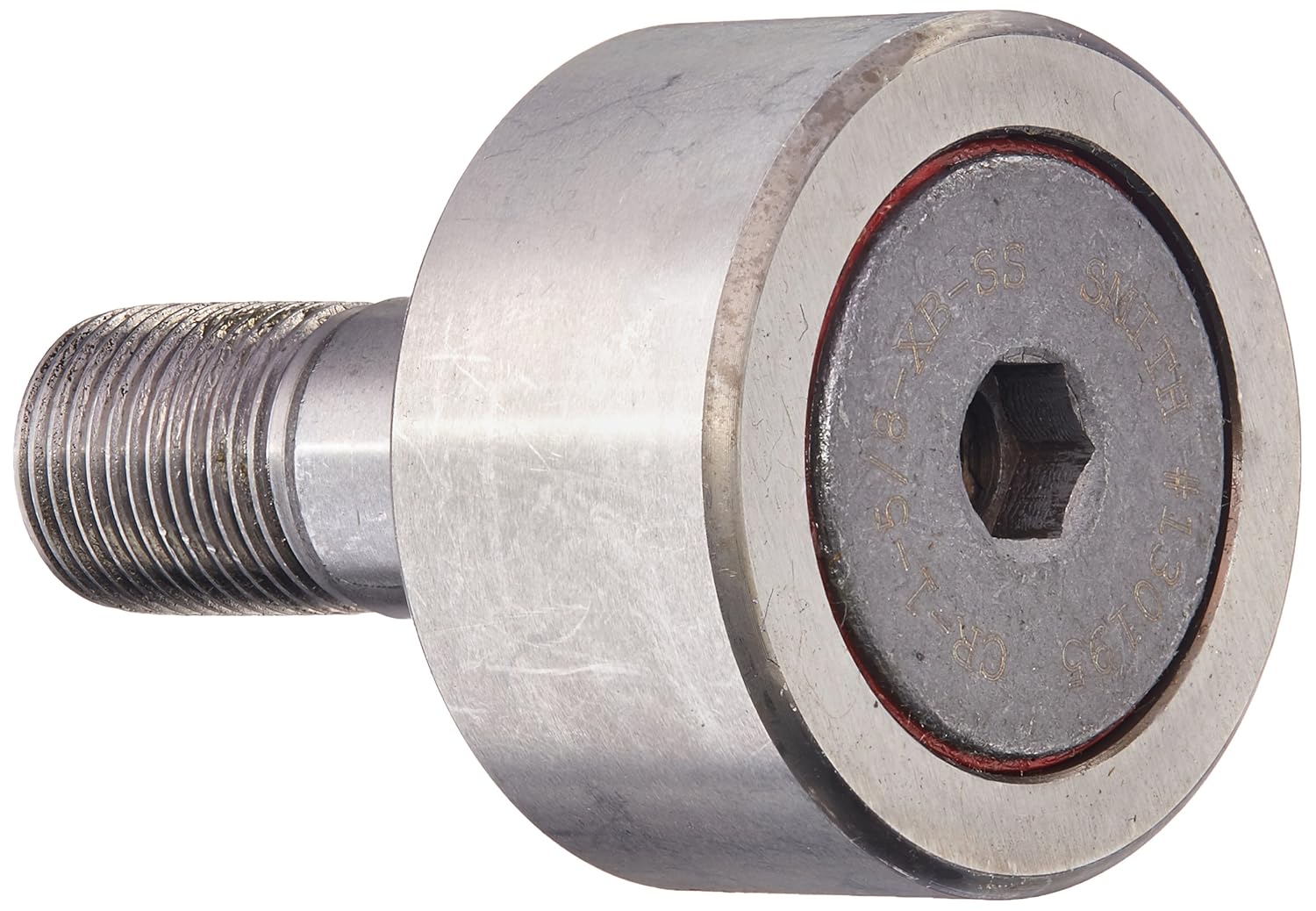

Smith Bearing® HR-1/2-XB Cylindrical Stud Type Needle Bearing Cam Follower, 1/2 in Dia x 3/8 in W Roller, 1/4 in Dia x 5/8 in L Stud, 52100 Steel Roller
The HR Series have a larger diameter stud and are recommended for applications with high running loads and/or heavy shocks where deflection should be held to a minimum. Rollers and outer races are identical to the standard CR Series. Manufactured from high alloy bearing quality steel.
-
BrandSmith Bearing®
-
UPC651041040632
-
Manufacturer Part NumberHR-1/2-XB
-
CountryUSA
-
Load Capacity970 lb Dynamic/1590 lb Static
-
Thread Length1/4 in
-
Thread Size1/4-28 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter1/2 in
-
Roller Material52100 Steel
-
Roller Width3/8 in
-
Head TypeHex Socket
-
SeriesHR-XB
-
Stud Diameter1/4 in
-
Stud Length5/8 in
-
Stud TypeHeavy
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 11Y046 |
-
UNSPSC31171530
-
Warranty12 months
-
Full Engineering Drawing
-
Catalog
