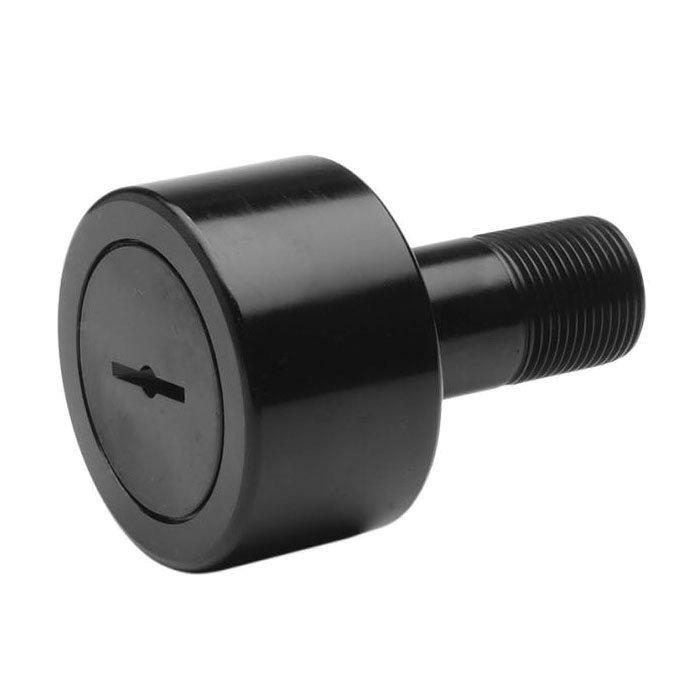

Smith Bearing® CR-1-X Cylindrical Stud Type Needle Bearing Cam Follower, 1 in Dia x 5/8 in W Roller, 7/16 in Dia x 1 in L Stud, 52100 Steel Roller
Screwdriver slot stud type needle roller bearings are recommended where running loads and shock loads are moderate. Bearing capacity of the stud type series is limited by the moderately sized stud. Manufactured from high alloy bearing quality steel. Most commonly used general purpose cam follower and available in sealed versions.
-
BrandSmith Bearing®
-
UPC651041038097
-
Manufacturer Part NumberCR-1-X
-
CountryUSA
-
Load Capacity3030 lb Dynamic/3100 lb Static
-
Thread Length1/2 in
-
Thread Size7/16-20 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter1 in
-
Roller Material52100 Steel
-
Roller Width5/8 in
-
Head TypeScrewdriver Slot
-
SeriesCR-X
-
Stud Diameter7/16 in
-
Stud Length1 in
-
Stud MaterialCarbon Steel
-
Stud TypeStandard
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 13W687 |
-
UNSPSC31171530
-
Warranty12 months
-
Full Engineering Drawing
-
