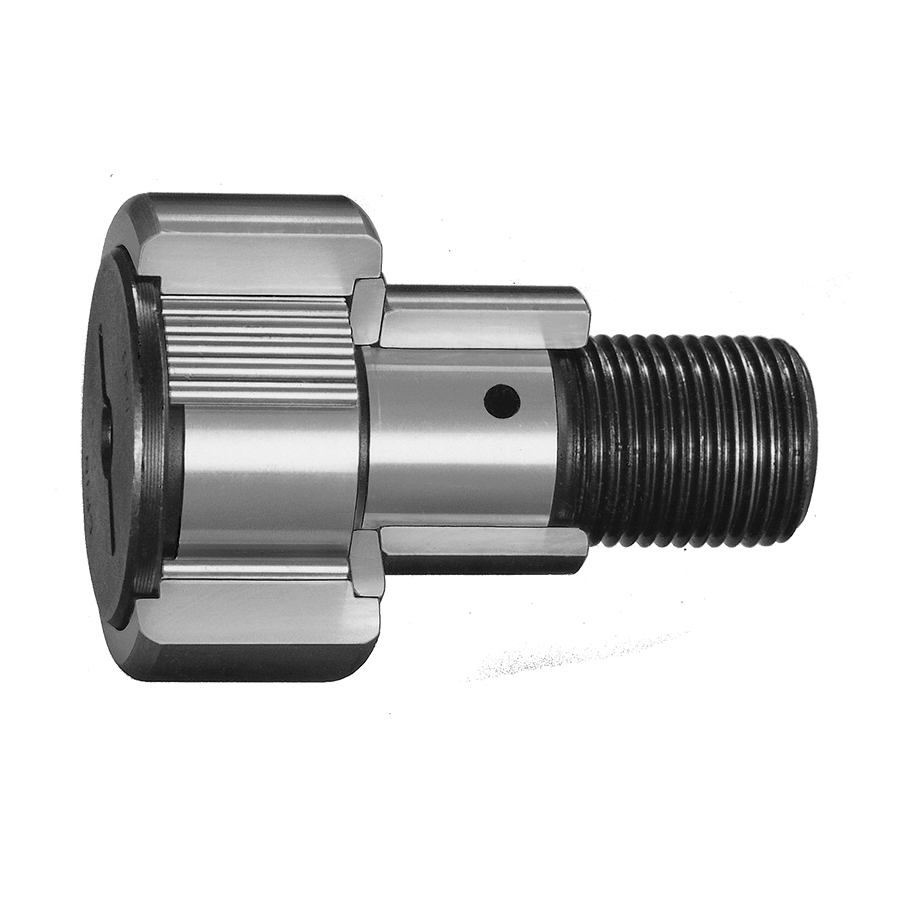

IKO CFE101VUU Metric Series Eccentric Collar Uncaged Cam Follower With Cylindrical Outer Ring, 26 mm Dia x 12 mm W Roller, 10 mm Dia x 23 mm L Stud, High Carbon Steel Roller
IKO designs and manufactures a broad selection of Cam Followers to meet the diverse needs of applications including machine tools, industrial robots, electronic parts production and office automation equipment. A Cam Follower is a bearing that incorporates needle style rollers between a stud and a thick outer ring.
-
BrandIKO
-
Manufacturer Part NumberCFE101VUU
-
CountryUSA
-
Load Capacity9570 N Dynamic/14500 N Static
-
Closure TypeSealed
-
Head TypeScrewdriver Slot
- Small coefficient of friction
- Excellent rotational performance designed for outer ring revolution
- High load capacity by design - radial gap is smaller than within the general needle roller bearings, alleviating impact load and increasing lifetime
- Easy attachment with either hexagon sockets or screw driver slots
- Eccentric Cam Followers feature an eccentric collar fixed to the stud, enabling easy positioning in the radial direction against the opposing track surface
- Eccentricity ranges from 0.4 to 1.5 mm
- Easy lubrication with oil supplied from the stud head with a hexagon socket design
-
UNSPSC31171530
-
