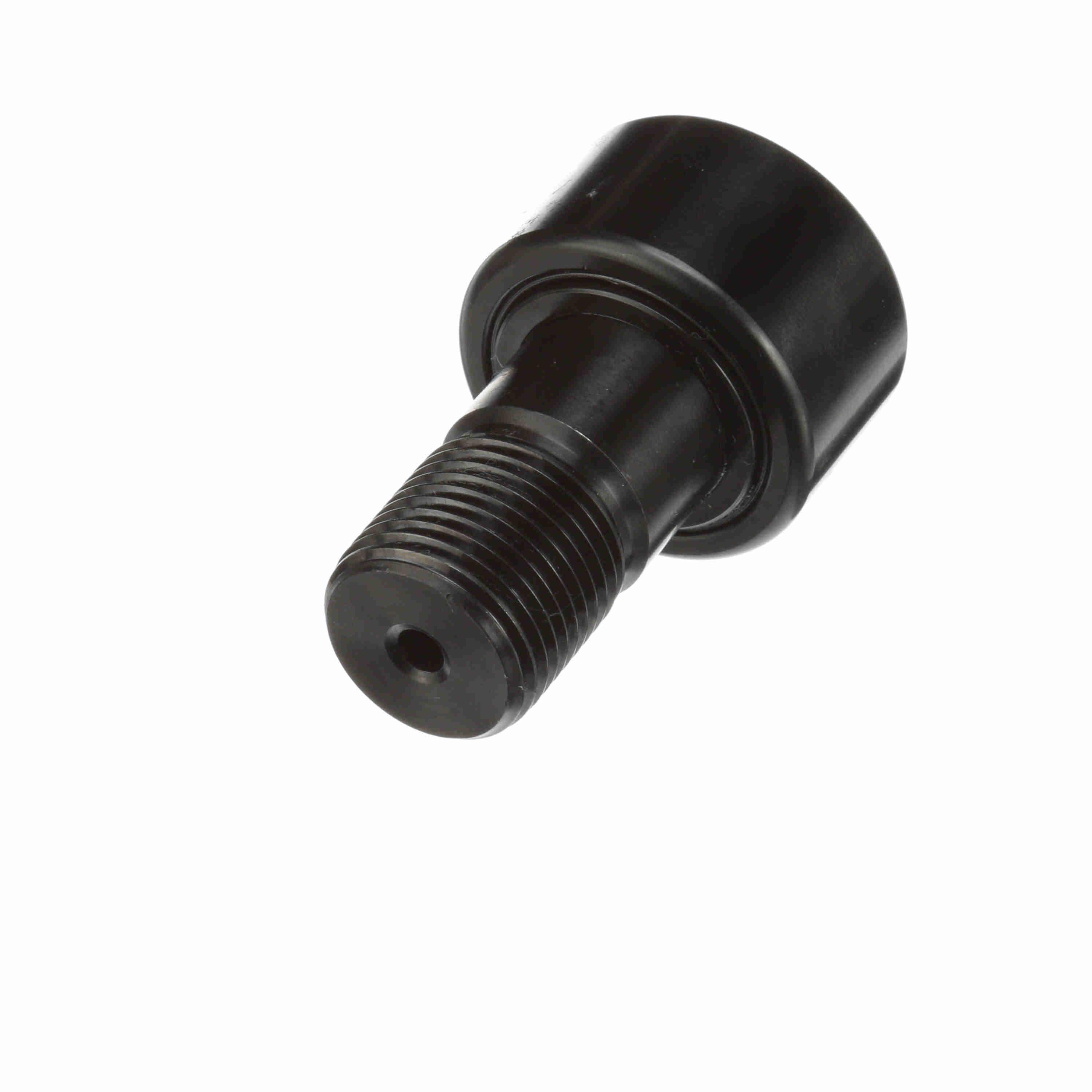

McGill® CAMROL® 2140512000 CFH Cylindrical OD Cam Follower With LUBRI-DISC® Seal, 1-1/2 in Dia x 7/8 in W Roller, 7/8 in Dia x 1-1/2 in L Stud, Chrome Steel Roller

0 Ratings
$93.81
In Stock
SKU: MCGCH11/2SB
noimage_new

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.

My Wishlist
Compare
Main specs
  • Brand
    McGill®
  • UPC
    726166035754
  • Manufacturer Part Number
    2140512000
  • Country
    USA
Specification
  • Load Capacity
    4840 lb Dynamic/11200 lb Static
  • Temperature Rating
    -20 to 250 deg F
  • Finish
    Black Oxide
  • Thread Length
    3/4 in
  • Thread Size
    7/8-14 UNF
  • Maximum Speed
    2500 rpm
  • Closure Type
    Sealed
  • Type
    Cylindrical OD
  • Roller Diameter
    1-1/2 in
  • Roller Material
    Chrome Steel
  • Roller Width
    7/8 in
  • Head Type
    Hex
  • Series
    CFH
  • Stud Diameter
    7/8 in
  • Stud Length
    1-1/2 in
  • Stud Material
    52100 Steel
  • Stud Type
    Heavy
Features
  • Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
  • It provides improved resistance to shock loading versus caged needle bearing
  • A heavy sectioned outer race design to help withstand shock loading of cam follower operation
  • Inner studs are induction heat treated in the roller path and flange surfaces
  • Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
  • Bearings are supplied pre-lubricated with lithium soap thickened grease
  • The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
  • The threads are manufactured to a class 2 tolerance
Additional Information
  • Alternative Part Number
    CFH 1 1/2 SB
  • UNSPSC
    26101708
  • Standards/Approvals
    ABMA Standard
  • Package Description
    EACH
