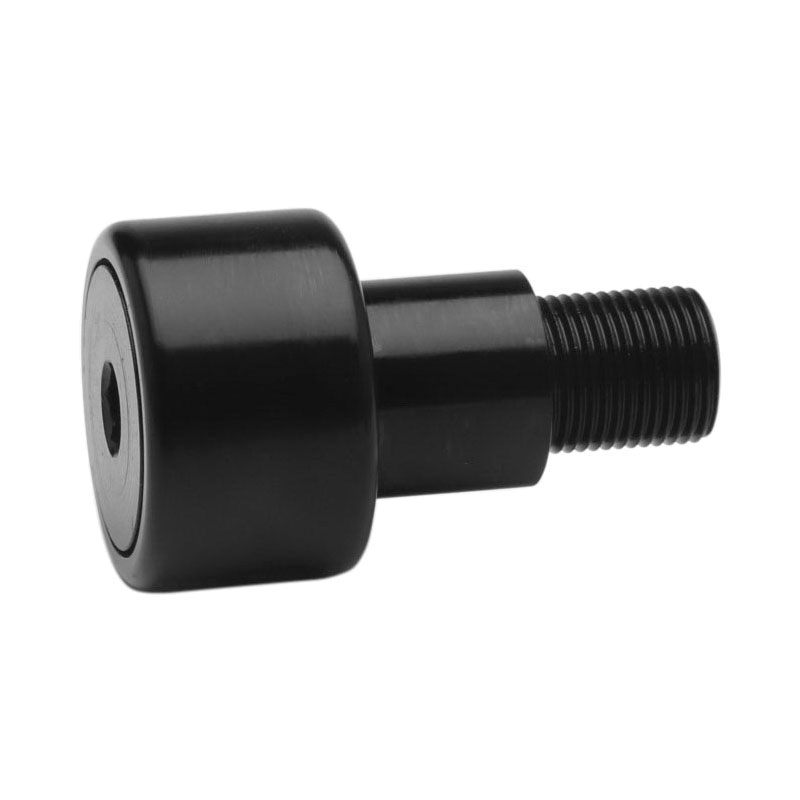

Smith Bearing® CR-3/4-XBE Cylindrical Stud Type Needle Bearing Cam Follower With Eccentric Bushing, 3/4 in Dia x 1/2 in W Roller, 1/2 in Dia x 7/8 in L Stud, 52100 Steel Roller
A press fit eccentric sleeve provides correct alignment and adjustment without costly preparation of close tolerance mounting holes and members. Eliminate problems of clearances, preloading and wear compensation and assure load sharing in multiple cam follower applications. Offer two model are non-crowned outer race and crowned outer race.
-
BrandSmith Bearing®
-
UPC651041140844
-
Manufacturer Part NumberCR-3/4-XBE
-
CountryUSA
-
Load Capacity2140 lb Dynamic
-
Thread Length3/8 in
-
Thread Size3/8-24 UNF
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter3/4 in
-
Roller Material52100 Steel
-
Roller Width1/2 in
-
Head TypeHex Socket
-
SeriesCR-XBE
-
Stud Diameter1/2 in
-
Stud Length7/8 in
-
Stud MaterialCarbon Steel
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 13W749 |
-
UNSPSC31171530
-
Warranty12 months
-
