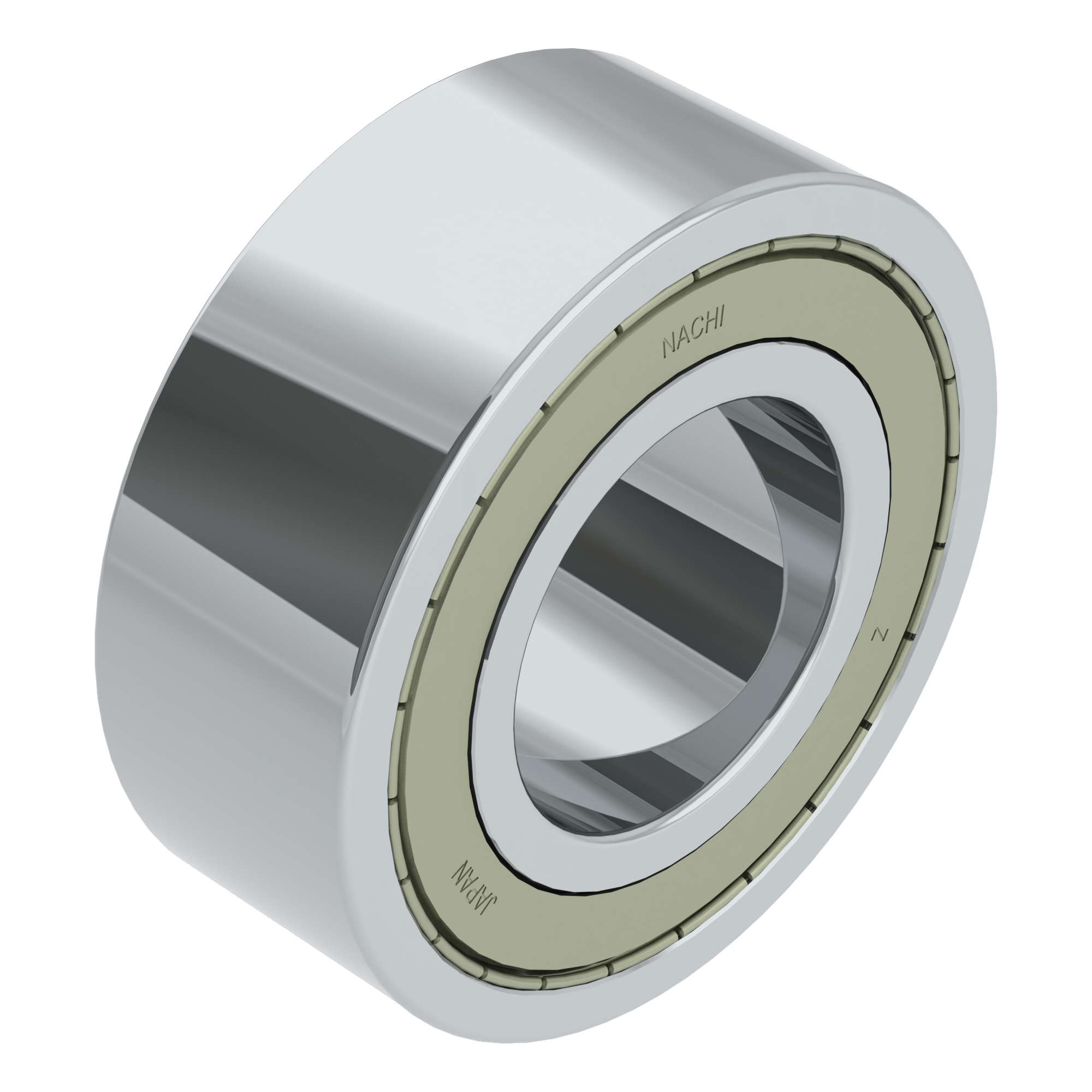

NACHI DOUBLE ROW SHIELDED BALL BEARINGS NAC 5304-ZZ

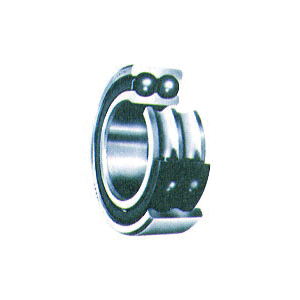

A double-row angular contact ball bearing is basically two single-row angular contact ball bearings with 20 deg contact angles, mounted back-to-back while contained within a narrower single bearing. These bearings occupy less axial space and can take a bi-directional axial, radial and moment loads in one bearing where it takes a matched pair otherwise.
-
BrandNACHI
-
Manufacturer Part Number5304ZZ
-
CountryUSA
-
Load Capacity21700 N Dynamic/13300 N Static
-
Cage MaterialPressed Steel
-
Maximum Speed9000 rpm Grease/11000 rpm Oil
-
Closure TypeDouble Shield
-
Width22.2 mm
-
Series5300
-
Number of Rows2
-
Outside Diameter52 mm
-
Bore Diameter20 mm
- More economical than two matched single-row angular contact bearings
- Single bearing yields handling and mounting benefits
- More compact than two single-row bearings
- Support radial and axial loads in either direction
- Capable of some moment load
- Sealed bearings are maintenance-free
- Low noise
- Energy efficient
- Cost effective
- Reduced friction
- Long life
-
UNSPSC31171531
-
Package DescriptionEACH
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
