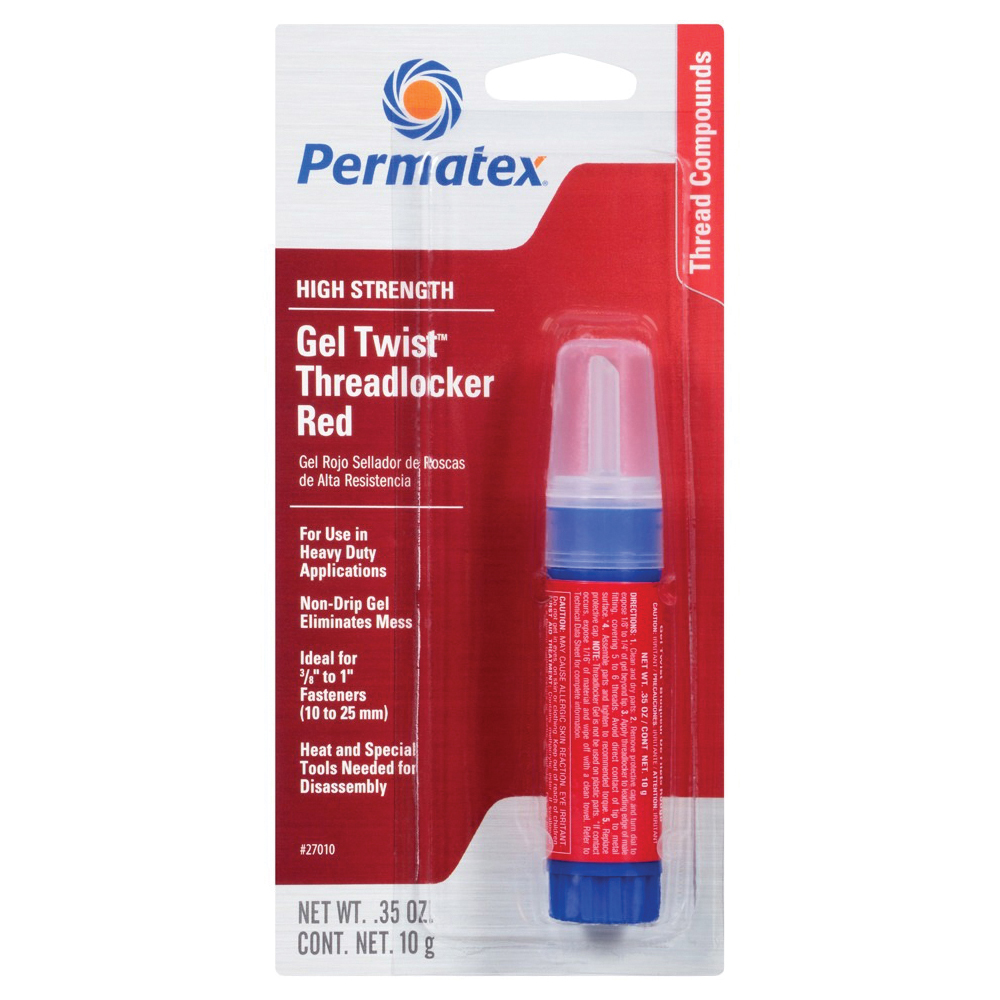

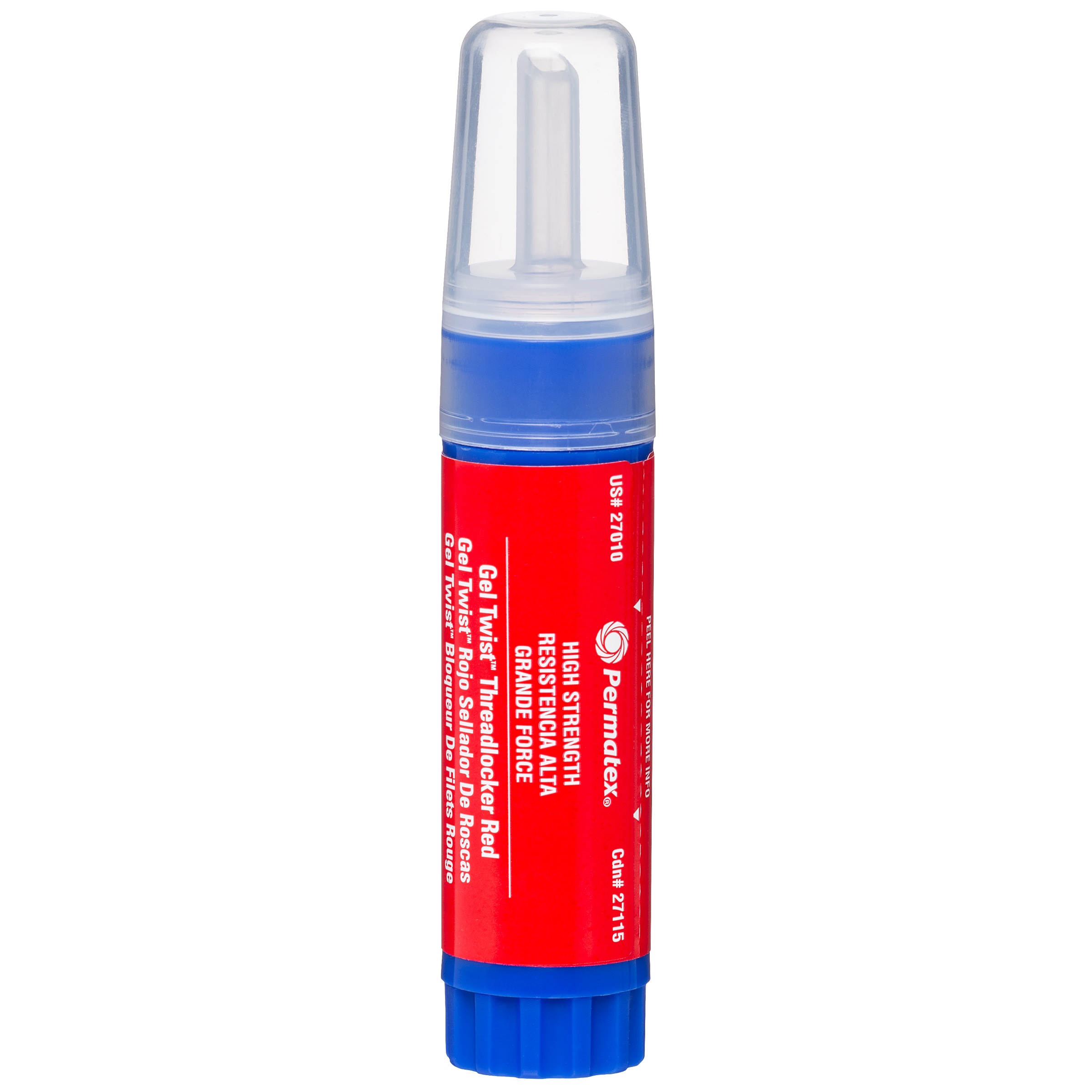

Permatex® 27010 Gel Twist™ High Strength Threadlocker, 10 g Container Tube Container, Gel Form, Red
Permatex® high strength threadlocker red gel is a high strength anaerobic threadlocking gel conveniently packaged in a new Gel Twist™ or Gel Squeeze™ applicator. The product, like its liquid counterpart, is a single component, anaerobic gel that cures when confined in the absence of air between close fitting metal surfaces, ideal for all 3/8 to 1 in (10 to 25 mm) and greater diameter threaded assemblies. Excellent chemical resistance and temperature resistance range of -65 to 300 deg F (-54 to 149 deg C). The assembly may require the use of heat to remove bolts. NSF Nonfood Components Program Listed (P1) (135870).
-
BrandPermatex®
-
UPC686226270108
-
Manufacturer Part Number27010
-
CountryUSA|Canada
-
Temperature Rating-65 to 300 deg F
-
Flash Point>203 deg F
-
FormGel
-
ColorRed
-
TypeHigh Strength
-
Container Size10 g
-
Container TypeTube
-
Applicable MaterialsSoft Steel Iron, Bright Platings, Copper, Anodized Surfaces, Brass, Titanium, Manganese, Zinc, Bronze, Pure Aluminum, Nickel, Stainless Steel, Aluminum Alloy and Cadmium
-
SeriesGel Twist™
-
Curing Time24 hr
-
Specific Gravity1.13
- Pin-point applicator puts the thread locker where you want it on the part
- Anaerobic curing method
- Resists diesel fuel, hydraulic fluid, leakage, moisture, vibration loosening
- Eliminates need for stocking expensive lock nuts and lock washers
- Removable with hand tools for easy disassembly
- They also seal the threads against leakage and prevent rust and corrosion
- OEM specified
- Especially well suited for permanently locking studs and press fits
- Adds 3000 psi holding power on slip and press fit assemblies
- Replaces set screws and snap rings
- Locks against vibration loosening
- Gel formula provides liquid reliability without drips, globs, mess or waste
- May require heat or special tools for removal
- For heavy duty applications 3/8 to 1 in
- Prevents rusting of threads
- Designed for use on vertical or hard-to-reach applications
- Cures without cracking or shrinking
- Not for use on plastic parts
- Well suited for permanently locking studs and nut/bolt assemblies
- Protects threads from corrosion and prevents vibration loosening
-

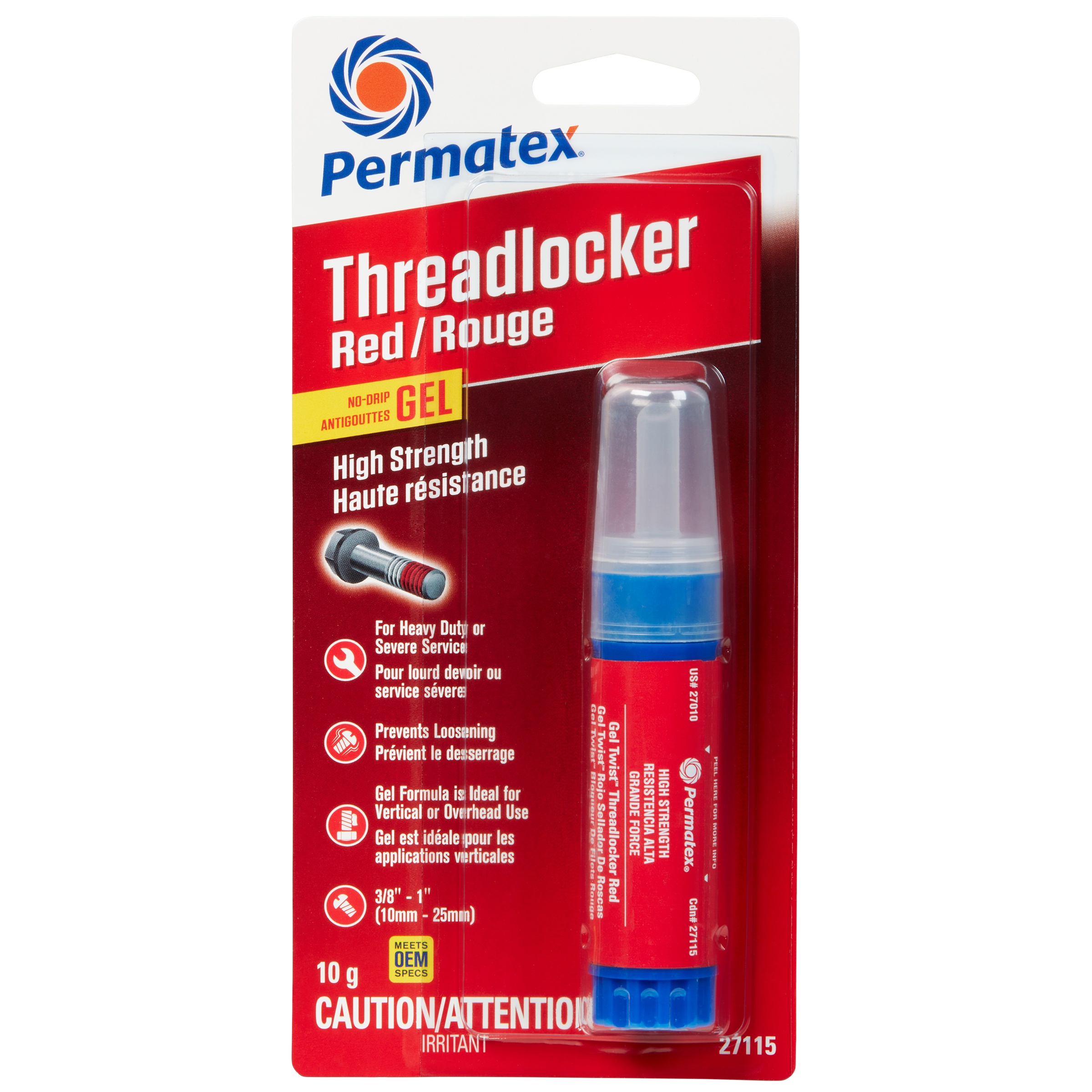

Alternative Part Number27115
-
UNSPSC31201701
-
Package Description6/CS
-
Standards/ApprovalsASTM D 5363/AN0321|MIL-S-46163A/Type II/Grade N|OSHA 29 CFR 1910.1200|ASTM D5363 AN0221|Military Specification 46163A Type I Grade-K)|PROP65: Certain Chemicals Contained Within Products May Cause Cancer Or Reproductive Harm. For more information go to www.P65Warnings.ca.gov|OEM Approved|Mil-S-46163A|Type I|Grade K|PROP65: Cancer - www.P65Warnings.ca.gov
-
SDS
-
Specification Sheet
-
Catalog
