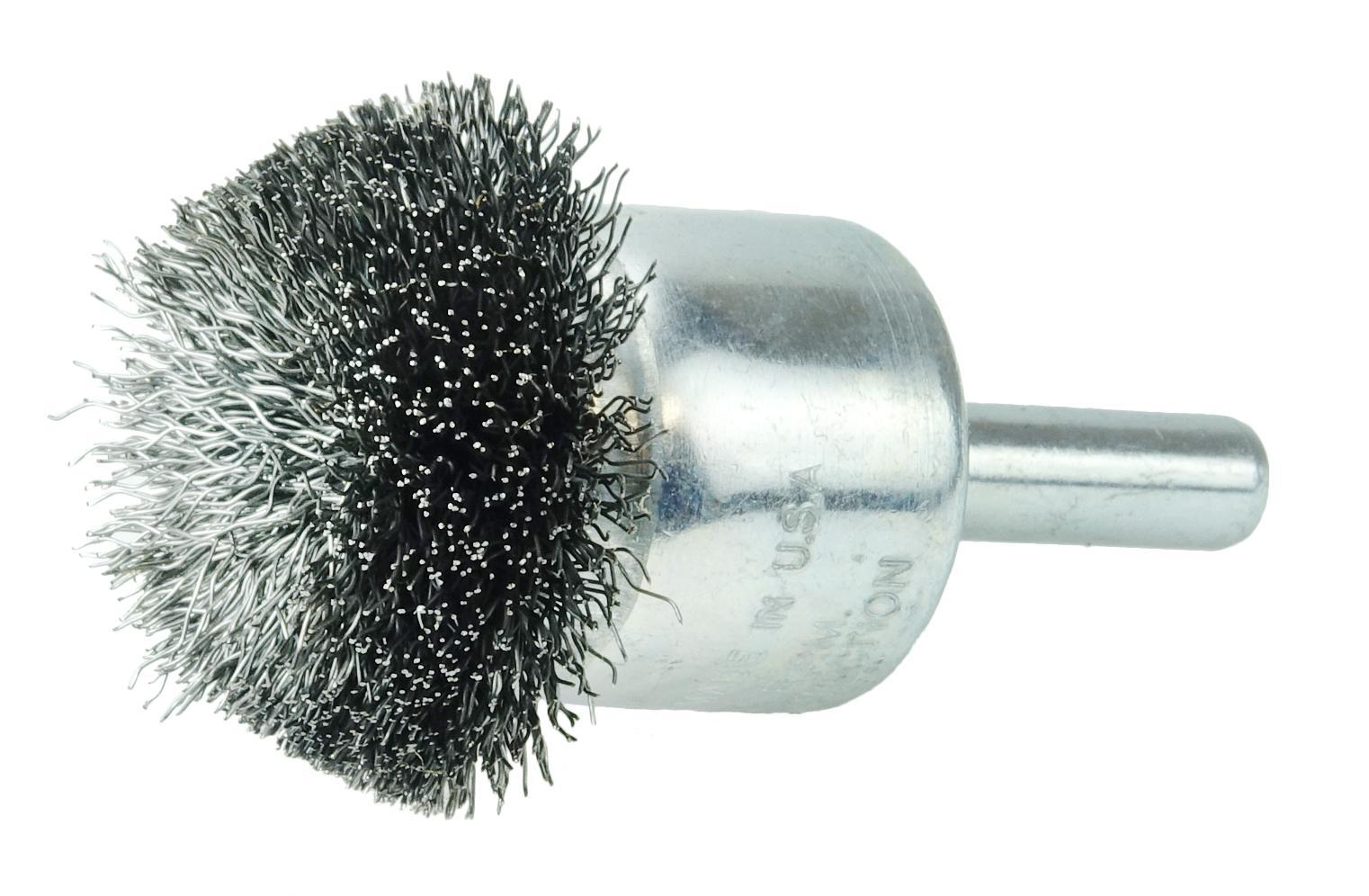

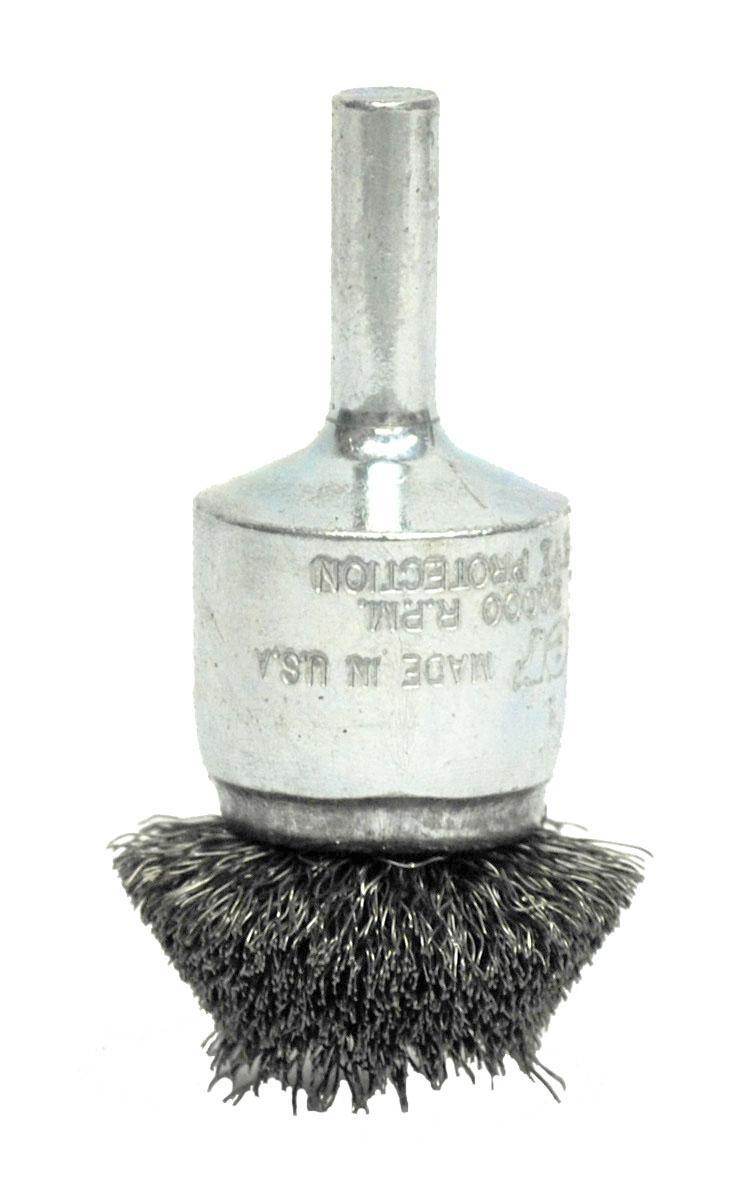

Weiler® 10076 Circular Flared Stem Mount End Brush, 1-1/4 in Dia Brush, Crimped, 0.006 in Dia Filament/Wire, Steel Fill, 5/8 in L Trim
Weiler® 10076 Circular Flared Stem Mount End Brush, 1-1/4 in Dia Brush, Crimped, 0.006 in Dia Filament/Wire, Steel Fill, 5/8 in L Trim
-
BrandWeiler®
-
UPC012382100766
-
Manufacturer Part Number10076
-
CountryUSA|Canada
-
Filament/Wire Diameter0.006 in
-
Filament/Wire TypeCrimped
-
Fill MaterialSteel
-
Maximum Speed20000 rpm
-
Trim Length5/8 in
-
TypeCircular Flared Stem Mount
-
Shank Diameter1/4 in
-
Overall Length1-5/8 in
-
Brush Diameter1-1/4 in
- Crimped wire fill which has been "pre-flared" to match the working angle of the brush at operating speed
- Suited for addressing broad and slightly contoured surfaces
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MK5110076 |
| MSC | 75846519 |
| Fastenal | 0813404 |
-
UNSPSC31191521
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B165.1|CSA Approved
