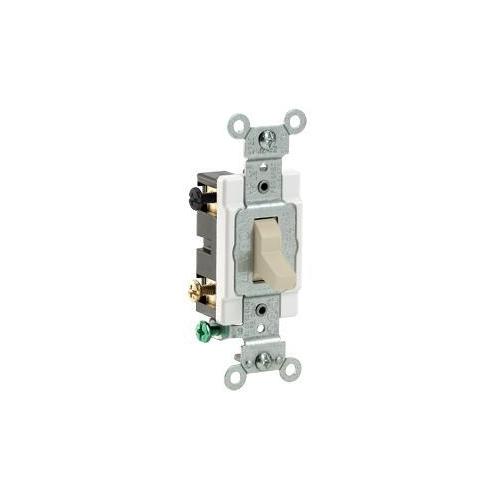

LEVITON 15-A IVORY 4-WAY ELEC/SWITCHES LEV CS-415-2-I
Leviton® commercial specification grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton® offers a large selection of 15 and 20 A commercial switches, available in a wide variety of colors, wiring options and other features.
-
BrandLeviton®
-
UPC078477815663
-
Manufacturer Part NumberCS415-2I
-
CountryUSA|Canada
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
Power Rating1/2, 2 hp
-
ColorIvory
-
Type4-Way Grounding
-
MountingSurface
-
Contact Rating1/2 hp at 120 V AC, 2 hp at 240 V AC
-
ActuatorToggle
-
Voltage Rating120/277 V AC
-
Amperage Rating15 A
-
Dimensions46 in H x 1.31 in W x 0.92 in D
-
EnclosureNEMA WD-1/WD-6
-
Environmental Conditions-40 to 120 deg C Operating Temperature
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Heavy gauge, rust resistant steel mounting strap
- Accepts no 14 to 12 AWG copper or copper clad wire
- Convenient break-OFF plaster ears for best alignment
- Large switch contacts for maximum conductivity
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25HH18 |
-
Alternative Part Number7334018
-
UNSPSC39122211
-
IDEA Index ID7334018
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
