IDEAL TOGGLE SWITCHES--USE "GB-" GSW-121

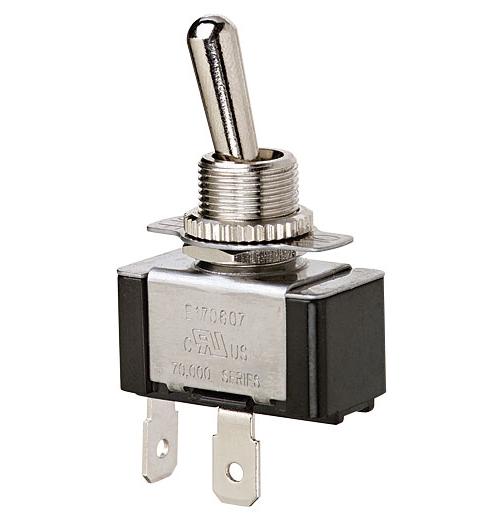

IDEAL® 774093 Standard Toggle Switch, 125/227 VAC, 20/10 A, 3/4 hp Power Rating, SPST ON-OFF Contact
-
BrandIDEAL®
-
UPC783250603732
-
Manufacturer Part Number774093
-
CountryUSA
-
MaterialSolid Brass
-
Contact ConfigurationOn-Off SPST
-
Contact Rating21 A at 14.8 V DC
-
ActuatorToggle
-
Amperage Rating20/10 A
-
Dimensions1.13 in L x 0.57 in W x 0.61 in H
-
Environmental Conditions32 to 185 deg F Operating Temperature
-
Terminal TypeScrew
-
Power Rating3/4 hp
-
TypeStandard
-
Voltage Rating125/227 V AC
-
Number of Poles1
-
Operating Cycles100000 Cycles
- 1/2 in diameter mounting hole
- Great for power tool and motor control switch applications
- Rugged long-wearing solid brass/nickel-plated bushings
- Dielectric Strength 1500 V
- Mechanical Life 100000 cycles
- Operating Temperature 32 deg F to 185 deg F
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 24Z909 |
-
Alternative Part Number16988909
-
UNSPSC39122211
-
IDEA Index ID16988909
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CSA Certified|UL Recognized
-
Specification Sheet
