IDEAL SWITCHES--USE "GB-" GSW-117

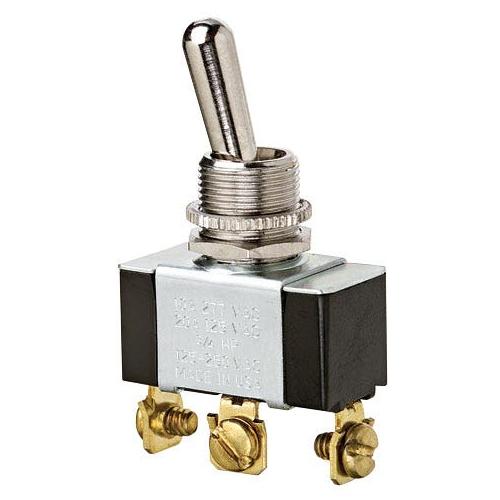

IDEAL® 774009 Standard Toggle Switch, 125/227 VAC, 20/10 A, 3/4 hp Power Rating, SPDT ON-OFF-ON Contact
-
BrandIDEAL®
-
UPC783250573486
-
Manufacturer Part Number774009
-
CountryUSA
-
MaterialSolid Brass
-
Contact ConfigurationOn-Off-On SPDT
-
Contact RatingFactory Tested 100000 Cycles to 21 A 14.8 VDC
-
ActuatorToggle
-
Amperage Rating20/10 A
-
Dimensions1.13 in L x 0.57 in W x 0.61 in H
-
Environmental Conditions32 to 185 deg F Operating Temperature
-
Terminal TypeScrew
-
Power Rating3/4 hp
-
TypeStandard
-
Voltage Rating125/227 V AC
-
Number of Poles1
-
Operating Cycles100000 Cycles
- Rugged long wearing solid brass/nickel plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 24Z927 |
-
Alternative Part Number8346141
-
UNSPSC39122211
-
IDEA Index ID8346141
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CSA Certified|UL Recognized
-
RoHS
