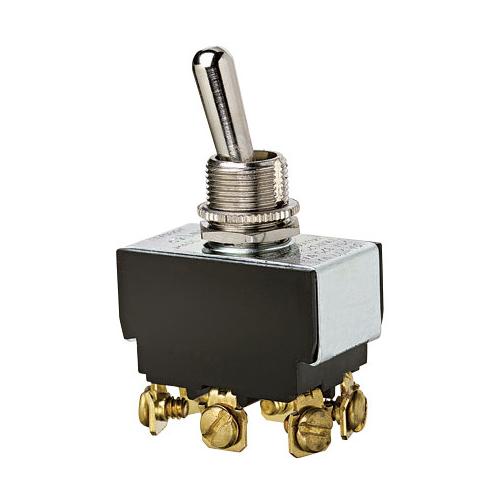

IDEAL® 774015 Heavy Duty Toggle Switch, 125/227 V AC, 20/10 A, 1-1/2 hp Power Rating, On-On DPDT Contact
IDEAL® 774015 Heavy Duty Toggle Switch, 125/227 VAC, 20/10 A, 1-1/2 hp Power Rating, DPDT ON-ON Contact
-
BrandIDEAL®
-
UPC783250573578
-
Manufacturer Part Number774015
-
CountryUSA
-
Terminal TypeScrew
-
MaterialSolid Brass
-
Power Rating1-1/2 hp
-
TypeHeavy Duty
-
Contact ConfigurationOn-On DPDT
-
Contact RatingFactory Tested 100000 Cycles to 21 A 14.8 V DC
-
ActuatorToggle
-
Voltage Rating125/227 V AC
-
Amperage Rating20/10 A
-
Number of Poles2
-
Dimensions1.3 in L x 0.76 in W x 0.8 in H
-
Operating Cycles100000 Cycles
-
Environmental Conditions32 to 185 deg F Operating Temperature
- Rugged long-wearing solid brass/nickel-plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
- Mechanical Life - 100,000 cycles
- Mechanical Life 100000 cycles
- Operating Temperature 32 deg F to 185 deg F
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1XWR4 |
-
Alternative Part Number16988903
-
UNSPSC39122211
-
IDEA Index ID16988903
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CSA Certified|UL Recognized
-
Specification Sheet
