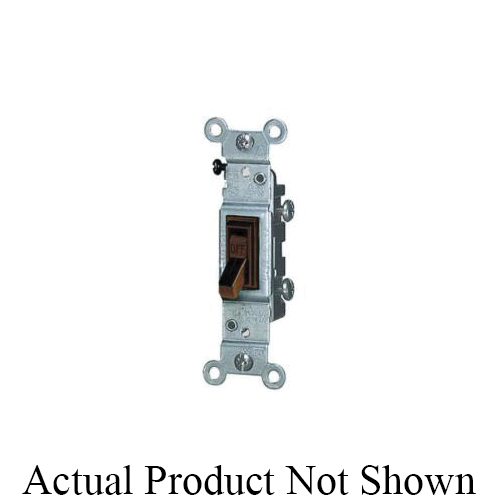

Leviton® 1451-2IS 1451 Framed Toggle Switch, 120 V AC, 15 A, 1/2 hp Power Rating
Tried-and-true toggle designs, Leviton residential grade AC quiet switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton's traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
-
BrandLeviton®
-
UPC078477101094
-
Manufacturer Part Number1451-2IS
-
CountryUSA
-
Terminal TypeQuick-Wire® Push-In/Side Wire
-
MaterialThermoplastic
-
Power Rating1/2 hp
-
ColorIvory
-
TypeFramed
-
MountingWall
-
ActuatorToggle
-
Voltage Rating120 V AC
-
Amperage Rating15 A
-
Series1451
-
Number of Poles1
-
Dimensions4.2 in H x 1.31 in W x 1.01 in D
-
Environmental Conditions-40 to 65 deg C Temperature
- Faster installation with combination of side wiring and Quickwire push-in wiring
- Quickwire accepts conductors up to #14 AWG
- Side wire accepts conductors up to #12 AWG
- Large head triple-drive combination screws (standard, Phillips, Robertson) for fast wiring installation
- Impact-resistant, durable thermoplastic toggle and frame
- Grounding screw
- Steel strap
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6X280 |
-
UNSPSC39122211
-
Standards/ApprovalsCSA LR-3413|UL E-7458|NOM 057 Certified
-
Warranty2 Years Limited
