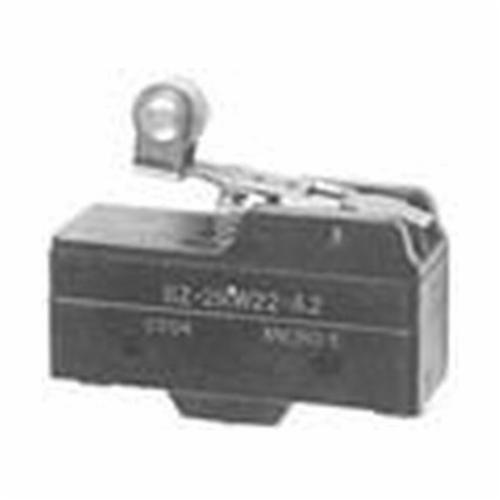

Honeywell BZ-2RW826-A2-BG MICRO SWITCH™ BZ Premium Large Basic Switch, 15 A, 125 VAC, 1CO SPDT Contact, 1 Poles
Honeywell BZ-2RW826-A2-BG MICRO SWITCH™ BZ Premium Large Basic Switch, 15 A, 125 VAC, 1NO-1NC, SPDT Contact, 1 Poles
-
BrandHoneywell
-
UPC661191718176
-
Manufacturer Part NumberBZ-2RW826-A2-BG
-
CountryUSA
-
Terminal TypeScrew
-
MaterialPhenolic
-
TypePremium Large
-
Contact Configuration1CO SPDT
-
ActuatorLever
-
SeriesMICRO SWITCH™ BZ
-
Number of Poles1
-
Dimensions2 in L x 0.7 in W x 1 in H
-
Operating Cycles20000000
-
Electrical Ratings15 A, 125 VAC
- Accepted world-wide standard "Large Basic" switch
- Low operating force and differential travel
- Long mechanical life up to 20,000,000 cycles at 95% survival
- Elongated mounting hole for easier, more accurate mounting
- 0.42 in Release force
- 2.39 in Overtravel
- 0.08-0.51 Differential travel
- 41.34 in Operating position
- -55 to 85 deg C Operating temperature
- Silver contact
- One Way Roller Lever
-
UNSPSC39121509
-
Standards/ApprovalsCE Marked|CSA Certified|ENEC Standard|UL Listed
