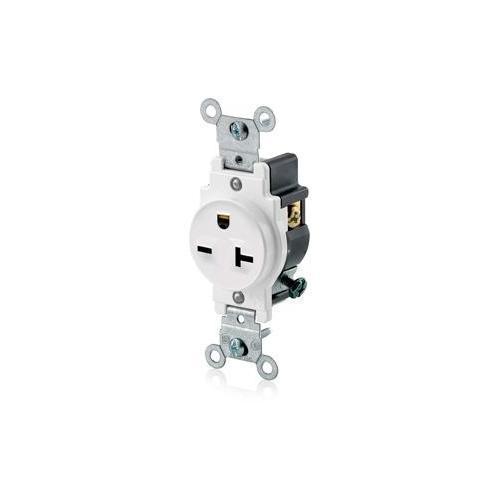

LEVITON 20-AMP 220-VOLT WHITE RECEPTACLES LEV 5821-W
Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477249871
-
Manufacturer Part Number5821-W
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialNylon
-
ColorWhite
-
TypeHeavy Duty Grounding Narrow Body
-
GradeCommercial
-
NEMA RatingNEMA 6-20R
-
Voltage Rating250 V AC
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions4.06 in H x 1.38 in W x 1.06 in D
-
Number of Wires3
-
EnclosureNEMA WD-2/WD-6
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Wallbox mounting
- Grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Steel strap
- 14 to 10 AWG wire terminal
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25KX99 |
-
Alternative Part Number7366092
-
UNSPSC39121406
-
IDEA Index ID7366092
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL 94 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
