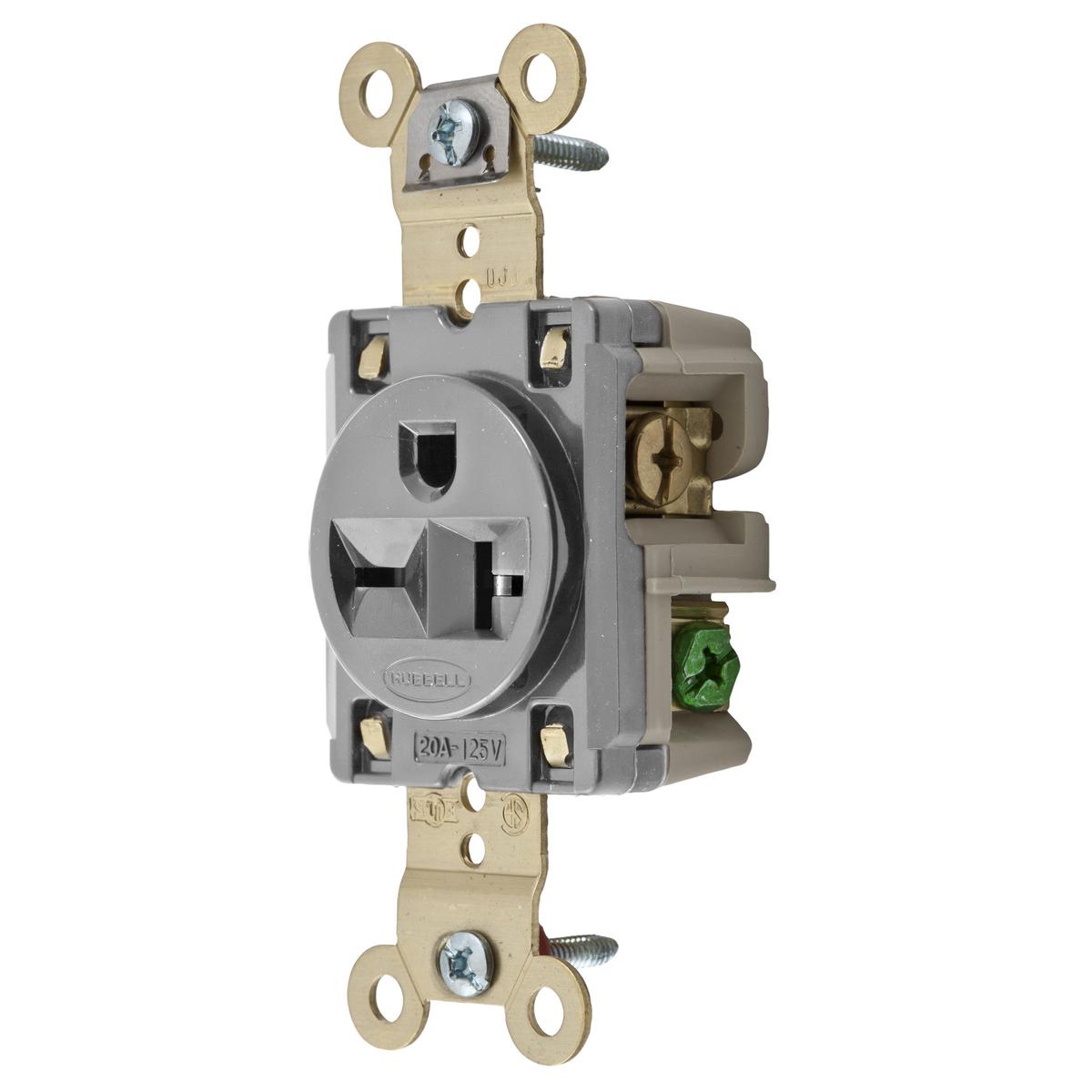

Hubbell Wiring Device-Kellems HBL5461GY 1-Phase Grounding Heavy Duty Screw Mount Straight Blade Single Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Gray
Hubbell Wiring Device-Kellems HBL5461GY 1-Phase Grounding Heavy Duty Screw Mount Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
-
BrandHubbell Wiring Device-Kellems
-
UPC783585001746
-
Manufacturer Part NumberHBL5461GY
-
CountryUSA|Canada
-
MaterialThermoplastic/Composite
-
ColorGray
-
GradeSpecification
-
NEMA Rating6-20R
-
Amperage Rating20 A
-
Dimensions3.28 x 1.63 x 1.19 in
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeBack and Side Wire/Screw
-
Type1-Phase Grounding Heavy Duty Screw Mount
-
Voltage Rating250 V AC
-
Number of Poles2
-
Number of Wires3
-
Horsepower2 hp
- Unique bypass contact design
- One-piece brass integral ground strap
-
Alternative Part Number8939945|11826095
-
UNSPSC39121406
-
IDEA Index ID8939945
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD5|CSA Certified|Federal Specification W-C-596|UL94 V-2 Flammability Rating|CSA 22.2 No. 42 285|Meets NEMA WD-6 Requirements|UL 498 File No. E2186|RoHS Compliant
-
