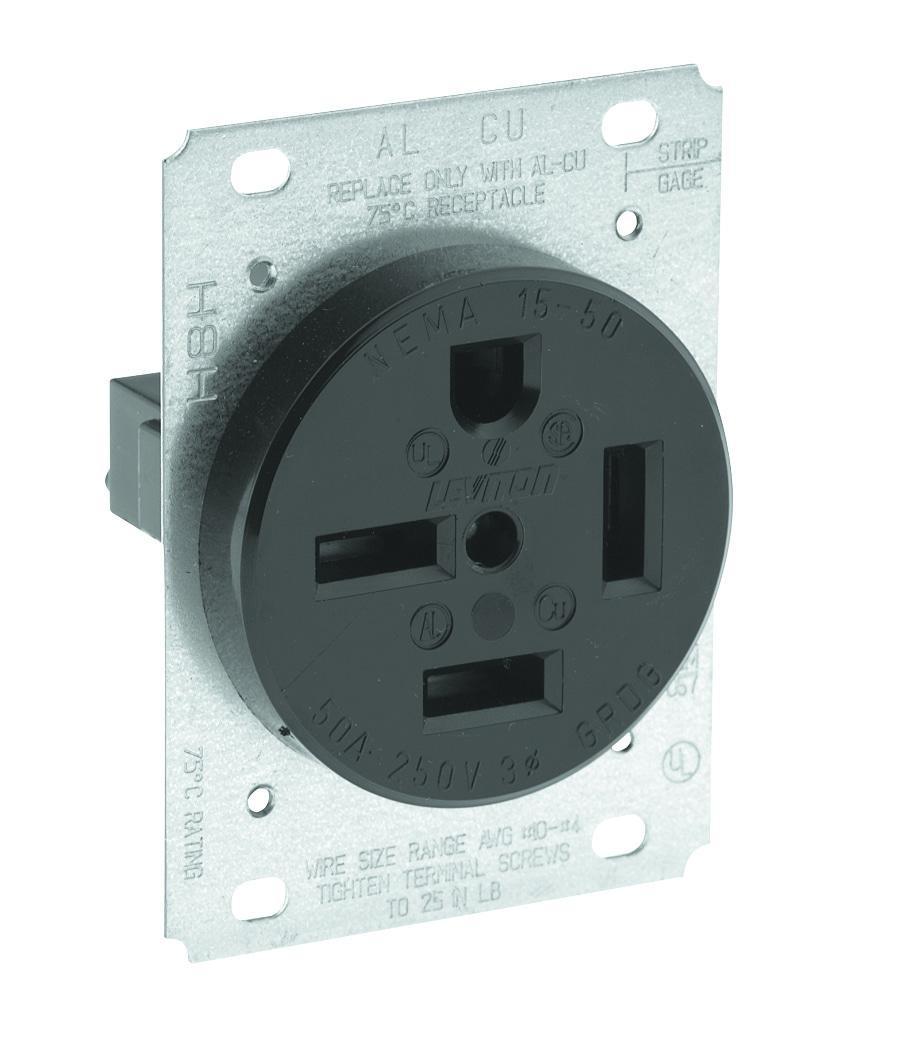

Leviton® 8450 3-Phase Extra Heavy Duty Grounding Straight Blade Receptacle, 250 V AC, 50 A, 3 Poles, 4 Wires, Black
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477843321
-
Manufacturer Part Number8450
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
Type3-Phase Extra Heavy Duty Grounding
-
GradeCommercial
-
NEMA RatingNEMA 15-50R
-
Voltage Rating250 V AC
-
Amperage Rating50 A
-
Horsepower7-1/2 hp
-
Number of Poles3
-
Dimensions3.75 in H x 2.75 in W x 2.1 in D
-
Number of Wires4
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
- 3-phase
- Maximum 30 deg C after 50 cycles OL at 150% rated current temperature rise
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HZN4 |
-
Alternative Part Number7342122
-
UNSPSC39121406
-
IDEA Index ID7342122
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
-
Warranty10 years
-
RoHS
-
Instruction/Installation Manual
